Kit LED Retrofit for polycarbonate diffuser
Wide or concentrated symmetric lighting distribution.
Flow recuperator in specular aluminium, with superficial titanium-magnesium treatment, non-iridescent (only for 2x22W CONCENTRATED version).
Internal transparent methacrylate lenses (only for 2x40W version).
Diffuser in self-extinguishing V2 polycarbonate, photo-engraved interior, UV stabilised, injection moulded, with smooth outer surface, sealing gasket.
The high output versions are NOT SELV.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
Version without recuperator - Driver/LED SELV - ON/OFF electronic wiring 230V-50/60Hz
A5057
Kit LED i3F 75,A3F 90-92 L1265 2x18W +PC
40
5952
4000
>80
1265x235x135
A5027
Kit LED I3F 75, A3F 90, A3F 92-L1565 - 2X22W+PC
49
6996
4000
>80
1565x235x135
A5026
KIT LED i3F 75, A3F 90-L1565 - 2x30W+PC
70
8790
4000
>80
1565x235x135
Version with CONCENTRATED recuperator - Driver/LED SELV - ON/OFF electronic wiring 230V-50/60Hz
A5013
Kit LED I3F75,A3F 90,A3F 92-L1565-2X22W CONC+PC
49
7351
4000
>80
1565x235x135
High output version with WIDE lenses - ON/OFF electronic wiring 230V-50/60Hz
A5215
Kit LED i3F 75,A3F 90 - L1565 - L 2x40W AMPIO + PC
84
11988
4000
>80
1565x235x135
High output version with CONCENTRATED lenses - ON/OFF electronic wiring 230V-50/60Hz
A5217
Kit LED i3F 75,A3F 90 - L1565 - L 2x40W CONC + PC
84
11889
4000
>80
1565x235x135

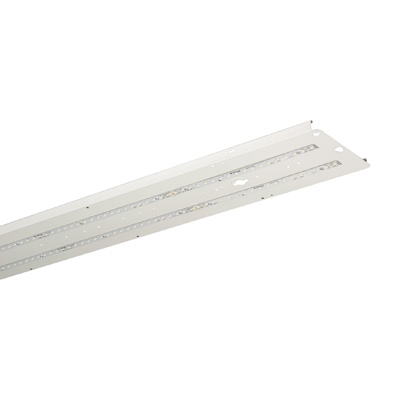

Kit LED Retrofit for glass diffuser
Wide or concentrated symmetric lighting distribution.
Flow recuperator in specular aluminium, with superficial titanium-magnesium treatment, non-iridescent (only for 2x22W CONCENTRATED version).
Internal transparent methacrylate lenses (only for 2x40W version).
Glass diffuser is NOT included in the kit.
The high output versions are NOT SELV.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
Version without recuperator - Driver/LED SELV - ON/OFF electronic wiring 230V-50/60Hz
A5148
KIT LED i3F 76,A3F 91,A3F 93-L1265-2x18W
40
5549
4000
>80
1265x235x105
A5118
Kit LED I3F 76, A3F 91, A3F 93 - L1565-2X22W
49
6938
4000
>80
1565x235x135
A5117
KIT LED i3F 76, A3F 91 - L1565-2x30W
70
8718
4000
>80
1565x235x105
Version with CONCENTRATED recuperator - Driver/LED SELV - ON/OFF electronic wiring 230V-50/60Hz
A5104
Kit LED I3F 76, A3F 91, A3F 93-L1565-2X22W CONC
49
7525
4000
>80
1565x235x135
High output version with WIDE lenses - ON/OFF electronic wiring 230V-50/60Hz
A5210
Kit LED i3F 76,A3F 91 - L1565 - L 2x40W AMPIO
84
11860
4000
>80
1565x235x105
High output version with CONCENTRATED lenses - ON/OFF electronic wiring 230V-50/60Hz
A5212
Kit LED i3F 76,A3F 91 - L1565 - L 2x40W CONC
84
11959
4000
>80
1565x235x105
Construction characteristics
Illuminotechnical characteristicsWide or concentrated direct distribution.
Lifetime (L93/B10): 30000 h. (tq+25°C)
Lifetime (L90/B10): 50000 h. (tq+25°C)
Lifetime (L85/B10): 80000 h. (tq+25°C)
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety in compliance with IEC/TR 62778: RG0 risk exempt, (IEC 62471).
Mechanical characteristicsGear-tray in hot galvanised steel, painted in white polyester, to be fixed to the body by rapid devices "Ribloc".
2x40W versionPMMA lenses with external flat surface.
For installations prior to 2010, the hinge opening is lost.
Electrical characteristicsIn compliance with EN 60598-1.
Compliance with the EN 60598-2-22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Source characteristics
- Linear LED modules.
- Colour initial tolerance (MacAdam): SDCM 3.
On request
- linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology
- retrofit Kit for luminaires of length 655mm (1-2x18W), power 1x36W - 1x58W, for Beta Stainless A3F 92-93, for Beta Ice 90
- wiring: dimmable, CLO, twin-circuit, different powers
- version with asymmetric lighting distribution
- wide flux recuperator to increase luminous flux by 5%
- different colour rendering indices and colour temperatures
- emergency versions
Installation
Correct installation of the Retrofit LED kit, compliant with EN 60598-1 and CE marked, must be only performed by qualified personnel to ensure compliance with the national installation standards.
Notes
Evaluate the use of moulded anti-glare glass according to the application.
Moulded anti-glare glass for retrofit LED kits, non-combustible, tempered, mounted and locked by a galvanised steel mono-block perimetrical frame with a sealing gasket.
For installations prior to 2010, the hinge opening is lost.
On request: versions with stainless steel frame for Beta 2x A3F91 - A3F93.
Code
Item
A5184
Moulded glass Beta 2x i3F 76 - L1565
A5185
Moulded glass Beta 2x i3F 76 - L1265
