Retrofit Kit to replace the 4x49W T5 Amalgam or the 4x58W T8 version

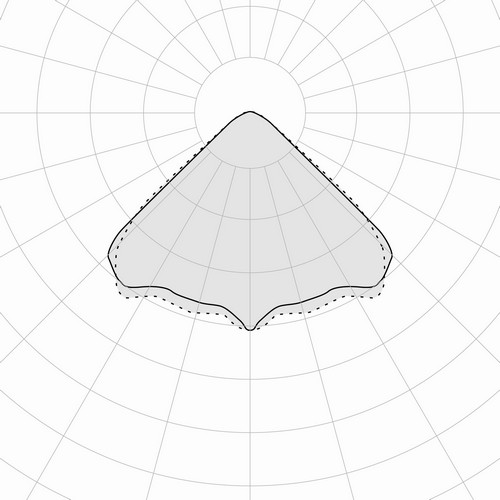

Wide or concentrated symmetric lighting distribution.
Transparent methacrylate lenses.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
Version with WIDE lenses - ON/OFF electronic wiring 230V-50/60Hz
A5308
Kit LED Beta 430 - L1551- 2X65W AMPIO
133
18872
4000
>80
1551x430x159
Version with CONCENTRATED lenses - ON/OFF electronic wiring 230V-50/60Hz
A5309
Kit LED Beta 430 - L1551- 2X65W CONC
133
18431
4000
>80
1551x430x159

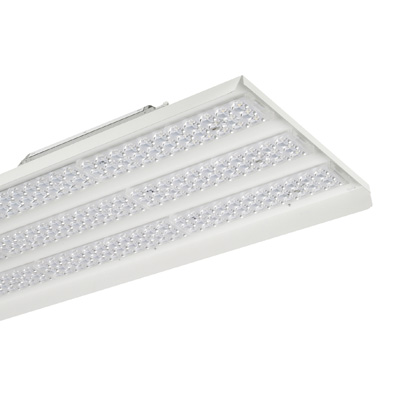

Retrofit Kit to replace the 4x80W - 6x49W T5 Amalgam version

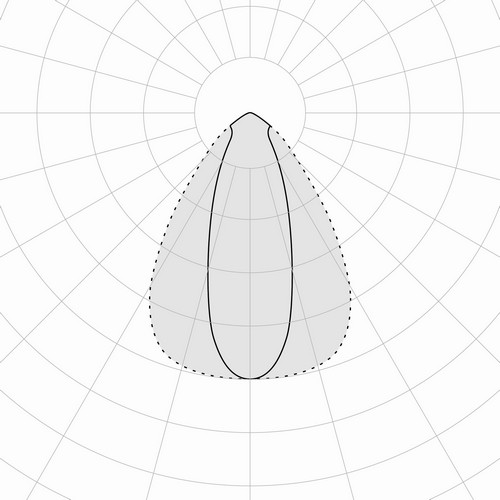

Wide or concentrated symmetric lighting distribution.
Transparent methacrylate lenses.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
Version with WIDE lenses - ON/OFF electronic wiring 230V-50/60Hz
A5311
Kit LED Beta 430 - L1551- 3X65W AMPIO
200
27804
4000
>80
1551x430x159
Version with CONCENTRATED lenses - ON/OFF electronic wiring 230V-50/60Hz
A5312
Kit LED Beta 430 - L1551- 3X65W CONC
200
27300
4000
>80
1551x430x159
Construction characteristics
Illuminotechnical characteristicsWide or concentrated direct distribution.
Lifetime (L93/B10): 30000 h. (tq+25°C)
Lifetime (L90/B10): 50000 h. (tq+25°C)
Lifetime (L85/B10): 80000 h. (tq+25°C)
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety in compliance with IEC/TR 62778: RG0 risk exempt, (IEC 62471).
Mechanical characteristicsGear-tray unit in white pre-painted steel.
PMMA lenses with external flat surface.
Electrical characteristicsIn compliance with EN 60598-1.
Compliance with the EN 60598-2-22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Twin-circuit.
Source characteristics
- Linear LED modules.
- Colour initial tolerance (MacAdam): SDCM 3.
On request
- wiring: CLO, dimmable, different powers
- linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology
- emergency versions
Installation
Correct installation of the Retrofit LED kit, compliant with EN 60598-1 and CE marked, must be only performed by qualified personnel to ensure compliance with the national installation standards.
Notes
Evaluate the use of moulded anti-glare glass according to the application.
Moulded anti-glare glass for retrofit LED kits, non-combustible, tempered, mounted and locked by a galvanised steel mono-block perimetrical frame with a sealing gasket.
For installations prior to 2010, the hinge opening is lost.
Code
Item
A5322
Moulded glass with frame Beta 430-L1551
Reducing sealing ring, dedicated to the use of cables with an external diameter of up to 8 mm.
Code
Item
A0521
Reducing sealing ring diam.8mm
