Beta i3F 75 PC Wide
Wide distribution.
Polycarbonate screen etched internally, V2 self‑extinguishing, UV stabilised, injection molded, sealing gasket, hinged opening.
Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
55596
i3F LED 752x12W AMPIO L655
28
3955
4000
>80
655x235x140
65
55598
i3F LED 752x24W AMPIO L1265
54
7471
4000
>80
1265x235x135
65
55600
i3F LED 752x30W AMPIO L1565
66
9715
4000
>80
1565x235x135
65
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
55607
i3F LED 752x12W EP AMPIO L655
29
3955
4000
>80
655x235x140
65
55609
i3F LED 752x24W EP AMPIO L1265
55
7471
4000
>80
1265x235x135
65
55611
i3F LED 752x30W EP AMPIO L1565
67
9715
4000
>80
1565x235x135
65

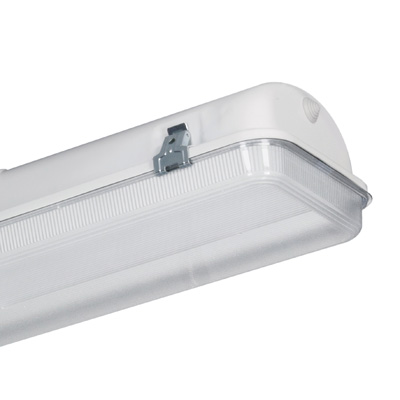

Beta i3F 75 PC Concentrated
Concentrated elliptical distribution.
Polycarbonate screen etched internally, V2 self‑extinguishing, UV stabilised, injection molded, sealing gasket, hinged opening.
Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
55006
i3F LED 752x30W CONC L1565
66
9597
4000
>80
1565x235x135
65
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
55017
i3F LED 752x30W EP CONC L1565
67
9597
4000
>80
1565x235x135
65

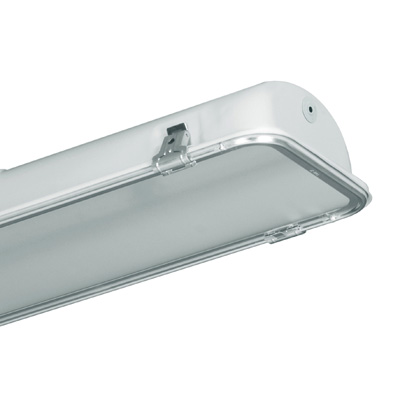

Beta i3F 76 VS Wide
Wide distribution.
VS molded antiglare glass, non‑combustible, monobloc perimetrical frame in galvanised steel, with sealing gasket, hinged opening.
On request, HACCP versions.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
55134
i3F LED 762x12W AMPIO VS L655
28
3591
4000
>80
655x235x110
65
55136
i3F LED 762x24W AMPIO VS L1265
54
6783
4000
>80
1265x235x105
65
55138
i3F LED 762x30W AMPIO VS L1565
66
8820
4000
>80
1565x235x105
65
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
55145
i3F LED 762x12W EP AMPIO VS L655
29
3591
4000
>80
655x235x110
65
55147
i3F LED 762x24W EP AMPIO VS L1265
55
6783
4000
>80
1265x235x105
65
55149
i3F LED 762x30W EP AMPIO VS L1565
67
8820
4000
>80
1565x235x105
65
Beta i3F 76 VT Wide
Wide distribution.
VT transparent glass, non‑combustible, monobloc perimetrical frame in galvanised steel, with sealing gasket, hinged opening.
On request, HACCP versions.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
55072
i3F LED 762x30W AMPIO VT L1565
66
9769
4000
>80
1565x235x105
65
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
55083
i3F LED 762x30W EP AMPIO VT L1565
67
9769
4000
>80
1565x235x105
65

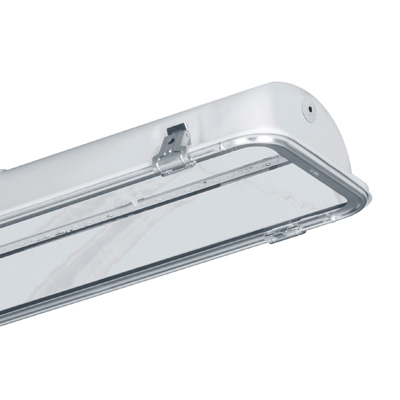

Beta i3F 76 VT Concentrated
Concentrated elliptical distribution.
VT transparent glass, non‑combustible, monobloc perimetrical frame in galvanised steel, with sealing gasket, hinged opening.
On request, HACCP versions.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
55666
i3F LED 762x30W CONC VT L1565
66
9823
4000
>80
1565x235x105
65
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
55677
i3F LED 762x30W EP CONC VT L1565
67
9823
4000
>80
1565x235x105
65
ILLUMINOTECHNICAL
Wide or concentrated direct distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Single‑piece housing in pressed steel, powder‑coated in white epoxy‑polyester.
Oversized flux recuperator in specular aluminium, with titanium‑magnesium surface treatment, non‑iridescent.
Gear‑tray unit in hot‑galvanised steel, painted in white polyester, fixed to the housing by means of "Ribloc" rapid devices in galvanised steel, hinged opening.
Stainless steel screen fixing clips.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
The luminaires with EP permanent emergency wiring on board comply with EN 60598‑2‑22 standard, high risk areas excluded.
Entry for power‑supply cable at one end cap, through M20x1,5 self‑extinguishing nylon cable gland.
INSTALLATION
Ceiling, suspended, on busbar or wall‑mounted.
For mounting hooks and brackets see accessories.
APPLICATIONS
Ambient temperature from ‑20°C to +35°C.
Dry, dusty indoor environments, subject to occasional water splashes.
Industrial environments, warehouses, environments requiring safety luminaires, such as prisons, thanks to the clips that can be locked by bolts (on request).
Environments in which it is necessary a total protection against falling fragments (eg environments with foodstuffs or machines with moving parts or with extreme temperature changes), use luminaires with laminated glass.
Tempered glass is not immune to falling fragments from harmless and caused by shocks or exceptionally derived from the tempering process.
WARNING
Fixture not suitable for cold stores with an ambient temperature <0°C and/or relative humidity >85%.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- laminated glass
- wiring: dimmable, CLO, twin‑circuit, class II
- safety snap‑lock clips
- linear LED modules, with special protection against aggressive chemically‑volatile substances, for standard LED technology
- body in painted aluminium or stainless steel
- emergency versions
Pair of mounting brackets and hooks for wall‑mounting, with nuts and bolts for luminaire fastening, everything in stainless steel.
Pair of steel hooks for suspended installation, with nuts and bolts for luminaire fastening.
In case of chain suspension installation, ALWAYS use one of the following codes: A0653.5‑pole cascade connection line, stiff cable H07 V2‑U, HT 90°C, 1.5 mm², terminal blocks with connection capacity 2x2.5 mm².
Wire‑guard for applications in dry environments, against shocks coming from any directions, galvanised steel rod Ø 5 mm.
Only for luminaires fixed without hooks.Anti‑condensation diffuser cable gland.
Recommended for installations in environments with temperature sudden changes or subject to condensation.Code
Item
A0521
Reducing sealing ring diam.8mm
Reducing sealing ring, dedicated to the use of cables with an external diameter of up to 8 mm.
Code
Item
A0653
Pair of fixing carab.for chain instal.
Snap hooks clips for chain suspension, galvanised steel.
