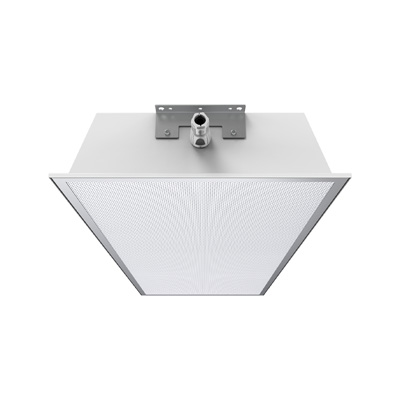

Beta 500 SP
Medium distribution.
SP transparent methacrylate (PMMA) diffuser, prismatic outside, antiglare.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
52056
Beta 500 150W/840 SP L870
162
25040
4000
>80
870x515x105
66
52002
Beta 500 200W/840 SP L870
198
30534
4000
>80
870x515x105
66
52003
Beta 500 300W/840 SP L1230
298
45194
4000
>80
1230x475x130
66
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
52057
Beta 500 150W/840 DALI SP L870
162
25040
4000
>80
870x515x105
66
52005
Beta 500 200W/840 DALI SP L870
198
30534
4000
>80
870x515x105
66
52006
Beta 500 300W/840 DALI SP L1230
298
45194
4000
>80
1230x475x130
66

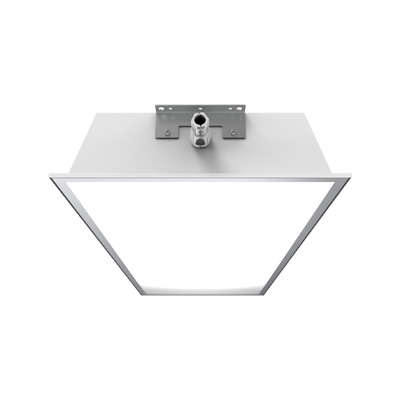

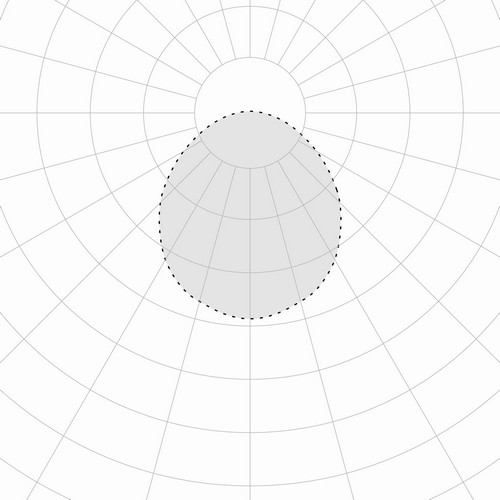

Beta 500 VA
Medium distribution.
Frosted glass HST tempered, non‑combustible.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
52072
Beta 500 150W/840 VA L870
162
25990
4000
>80
870x515x105
66
52050
Beta 500 200W/840 VA L870
198
32079
4000
>80
870x515x105
66
52051
Beta 500 300W/840 VA L1230
298
46132
4000
>80
1230x475x130
66
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
52073
Beta 500 150W/840 DALI VA L870
162
25990
4000
>80
870x515x105
66
52053
Beta 500 200W/840 DALI VA L870
198
32079
4000
>80
870x515x105
66
52054
Beta 500 300W/840 DALI VA L1230
298
46132
4000
>80
1230x475x130
66
Beta 500 SL Concentrated
Concentrated distribution.
3F Lens lenses with high luminous efficiency, transparent methacrylate (PMMA), fixed to the LED modules.
SL transparent methacrylate (PMMA) flat diffuser.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
52064
Beta 500 150W/840 CONC SL L870
162
25604
4000
>80
870x515x105
66
52026
Beta 500 200W/840 CONC SL L870
198
31159
4000
>80
870x515x105
66
52027
Beta 500 300W/840 CONC SL L1230
298
46022
4000
>80
1230x475x130
66
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
52065
Beta 500 150W/840 DALI CONC SL L870
162
25604
4000
>80
870x515x105
66
52029
Beta 500 200W/840 DALI CONC SL L870
198
31159
4000
>80
870x515x105
66
52030
Beta 500 300W/840 DALI CONC SL L1230
298
46022
4000
>80
1230x475x130
66

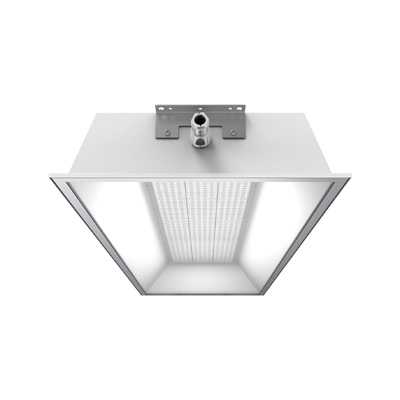

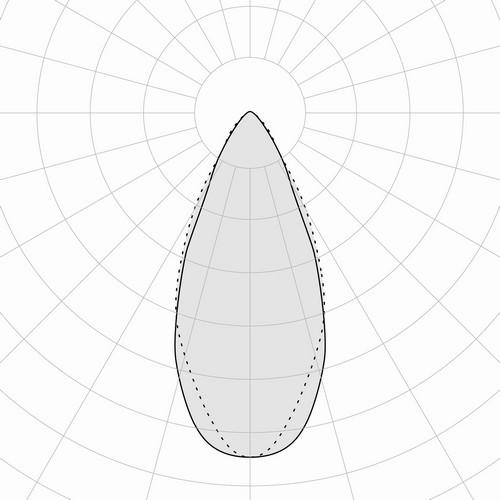

Beta 500 VT Concentrated
Concentrated distribution.
3F Lens lenses with high luminous efficiency, transparent methacrylate (PMMA), fixed to the LED modules.
Transparent glass HST tempered, non‑combustible.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
52068
Beta 500 150W/840 CONC VT L870
162
25604
4000
>80
870x515x105
66
52038
Beta 500 200W/840 CONC VT L870
198
31159
4000
>80
870x515x105
66
52039
Beta 500 300W/840 CONC VT L1230
298
46022
4000
>80
1230x475x130
66
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
52069
Beta 500 150W/840 DALI CONC VT L870
162
25604
4000
>80
870x515x105
66
52041
Beta 500 200W/840 DALI CONC VT L870
198
31159
4000
>80
870x515x105
66
52042
Beta 500 300W/840 DALI CONC VT L1230
298
46022
4000
>80
1230x475x130
66
ILLUMINOTECHNICAL
Direct symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing in white painted epoxy‑polyester powder aluminium.
White aluminium non‑iridescent high efficiency.
Perimetrical frame in stainless steel with vandal‑proof opening and stainless steel nuts and bolts.
Polyurethane foam seal, ecological, anti‑aging, installed using a continuous automatic process with no joints.
Fixing bracket in stainless steel.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Quick connection via 3/5 P connector.
ON/OFF electronic wiring: twin‑circuit for 200W and 300W versions.
INSTALLATION
Ceiling mounted, suspension or busway installation.
APPLICATIONS
Ambient temperature from ‑20°C to +45°C.
Commercial and industrial environments and warehouses.
Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
LIGHT MANAGEMENT
The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
NOTES
HST glassHST glass is composed of a tempered glass sheet which has undergone a thermal stabilisation process (Heat Soak Test) which reduces the risk of spontaneous breakage caused by nickel‑sulfide inclusions inside the glass.
It is not immune from harmless falling fragments, caused byshocks or, exceptionally, derived from the tempering process.
It is the user's responsibility to identify the most suitable type of diffuser for the application type.
WARNING
Fixture not suitable for cold stores with an ambient temperature <0°C and/or relative humidity >85%.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- transparent or frosted polycarbonate diffuser, laminated glass
- wiring: dimmable, CLO, single‑circuit
- linear LED modules, with special protection against aggressive chemically‑volatile substances, for standard LED technology
- versions with anti‑condensation filter
- emergency versions
Code
Item
A0521
Reducing sealing ring diam.8mm
Reducing sealing ring, dedicated to the use of cables with an external diameter of up to 8 mm.
Code
Item
A0858
Bracket for central suspension L870
A0859
Bracket for central suspension L1230
Stainless steel brackets for suspended installation.
Code
Item
A0860
Adjustable suspension kit 2m
Suspension installation kit consisting of ceiling plate, 2 metre long galvanised steel cables and regulators.
Code
Item
A0861
Pair of brack. ceiling instal. Beta500
Brackets for mounting of luminaire on ceiling.
