Products
 |
 |
 |
Beta 500
Models
Characteristics
Accessories
Beta 500 SP
Code 52002
Medium distribution.
SP transparent methacrylate diffuser, prismatic outside, antiglare.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
ON/OFF electronic wiring 230V-50/60Hz
52001
NEW
Beta 500 3x45W/840 SP L870
135
19638
4000
>80
870x515x105
66
52002
NEW
Beta 500 4x50W/840 SP L870
205
27998
4000
>80
870x515x105
66
52003
NEW
Beta 500 3x100W/840 SP L1230
308
41442
4000
>80
1230x475x130
66
52007
NEW
Beta 500 3x45W/865 SP L870
135
19343
6500
>80
870x515x105
66
52008
NEW
Beta 500 4x50W/865 SP L870
205
27578
6500
>80
870x515x105
66
52009
NEW
Beta 500 3x100W/865 SP L1230
308
40821
6500
>80
1230x475x130
66
DALI electronic wiring 230V-50/60Hz
52004
NEW
Beta 500 3x45W/840 DALI SP L870
135
19638
4000
>80
870x515x105
66
52005
NEW
Beta 500 4x50W/840 DALI SP L870
205
27998
4000
>80
870x515x105
66
52006
NEW
Beta 500 3x100W/840 DALI SP L1230
308
41442
4000
>80
1230x475x130
66
52010
NEW
Beta 500 3x45W/865 DALI SP L870
135
19343
6500
>80
870x515x105
66
52011
NEW
Beta 500 4x50W/865 DALI SP L870
205
27578
6500
>80
870x515x105
66
52012
NEW
Beta 500 3x100W/865 DALI SP L1230
308
40821
6500
>80
1230x475x130
66
Beta 500 VA
Code 52014
Medium distribution.
Frosted glass HST tempered, non-combustible.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
ON/OFF electronic wiring 230V-50/60Hz
52013
NEW
Beta 500 3x45W/840 VA L870
135
20383
4000
>80
870x515x105
66
52014
NEW
Beta 500 4x50W/840 VA L870
205
29414
4000
>80
870x515x105
66
52015
NEW
Beta 500 3x100W/840 VA L1230
308
42302
4000
>80
1230x475x130
66
52019
NEW
Beta 500 3x45W/865 VA L870
135
20077
6500
>80
870x515x105
66
52020
NEW
Beta 500 4x50W/865 VA L870
205
28973
6500
>80
870x515x105
66
52021
NEW
Beta 500 3x100W/865 VA L1230
308
41668
6500
>80
1230x475x130
66
DALI electronic wiring 230V-50/60Hz
52016
NEW
Beta 500 3x45W/840 DALI VA L870
135
20383
4000
>80
870x515x105
66
52017
NEW
Beta 500 4x50W/840 DALI VA L870
205
29414
4000
>80
870x515x105
66
52018
NEW
Beta 500 3x100W/840 DALI VA L1230
308
42302
4000
>80
1230x475x130
66
52022
NEW
Beta 500 3x45W/865 DALI VA L870
135
20077
6500
>80
870x515x105
66
52023
NEW
Beta 500 4x50W/865 DALI VA L870
205
28973
6500
>80
870x515x105
66
52024
NEW
Beta 500 3x100W/865 DALI VA L1230
308
41668
6500
>80
1230x475x130
66

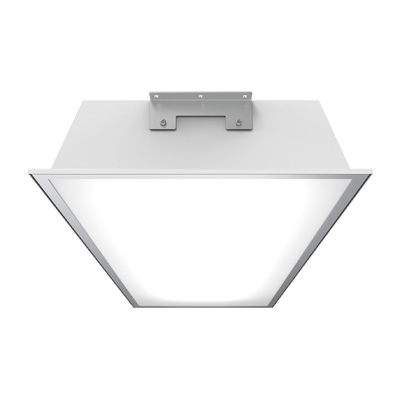

Beta 500 VA HO
Code 52050
Medium distribution.
Frosted glass HST tempered, non-combustible.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
ON/OFF electronic wiring 230V-50/60Hz
52049
NEW
Beta 500 HO 3x45W/840 VA L870
134
21404
4000
>80
870x515x105
66
52050
NEW
Beta 500 HO 4x50W/840 VA L870
198
30886
4000
>80
870x515x105
66
52051
NEW
Beta 500 HO 3x100W/840 VA L1230
298
44417
4000
>80
1230x475x130
66
DALI electronic wiring 230V-50/60Hz
52052
NEW
Beta 500 HO 3x45W/840 DALI VA L870
134
21404
4000
>80
870x515x105
66
52053
NEW
Beta 500 HO 4x50W/840 DALI VA L870
198
30886
4000
>80
870x515x105
66
52054
NEW
Beta 500 HO 3x100W/840 DALI VA L1230
298
44417
4000
>80
1230x475x130
66
Beta 500 SL Concentrated
Code 52026
Concentrated distribution.
3F Lens lenses with high luminous efficiency, transparent PMMA, fixed to the LED modules.
SL transparent PMMA flat diffuser.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
ON/OFF electronic wiring 230V-50/60Hz
52025
NEW
Beta 500 3x45W/840 CONC SL L870
135
20080
4000
>80
870x515x105
66
52026
NEW
Beta 500 4x50W/840 CONC SL L870
205
28571
4000
>80
870x515x105
66
52027
NEW
Beta 500 3x100W/840 CONC SL L1230
308
42201
4000
>80
1230x475x130
66
52031
NEW
Beta 500 3x45W/865 CONC SL L870
135
19779
6500
>80
870x515x105
66
52032
NEW
Beta 500 4x50W/865 CONC SL L870
205
28142
6500
>80
870x515x105
66
52033
NEW
Beta 500 3x100W/865 CONC SL L1230
308
41568
6500
>80
1230x475x130
66
DALI electronic wiring 230V-50/60Hz
52028
NEW
Beta 500 3x45W/840 DALI CONC SL L870
135
20080
4000
>80
870x515x105
66
52029
NEW
Beta 500 4x50W/840 DALI CONC SL L870
205
28571
4000
>80
870x515x105
66
52030
NEW
Beta 500 3x100W/840 DALI CONC SL L1230
308
42201
4000
>80
1230x475x130
66
52034
NEW
Beta 500 3x45W/865 DALI CONC SL L870
135
19779
6500
>80
870x515x105
66
52035
NEW
Beta 500 4x50W/865 DALI CONC SL L870
205
28142
6500
>80
870x515x105
66
52036
NEW
Beta 500 3x100W/865 DALI CONC SL L1230
308
41568
6500
>80
1230x475x130
66

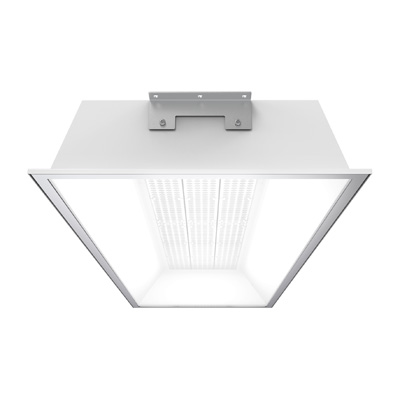

Beta 500 VT Concentrated
Code 52038
Concentrated distribution.
3F Lens lenses with high luminous efficiency, transparent PMMA, fixed to the LED modules.
Transparent glass HST tempered, non-combustible.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
ON/OFF electronic wiring 230V-50/60Hz
52037
NEW
Beta 500 3x45W/840 CONC VT L870
135
20080
4000
>80
870x515x105
66
52038
NEW
Beta 500 4x50W/840 CONC VT L870
205
28571
4000
>80
870x515x105
66
52039
NEW
Beta 500 3x100W/840 CONC VT L1230
308
42201
4000
>80
1230x475x130
66
52043
NEW
Beta 500 3x45W/865 CONC VT L870
135
19779
6500
>80
870x515x105
66
52044
NEW
Beta 500 4x50W/865 CONC VT L870
205
28142
6500
>80
870x515x105
66
52045
NEW
Beta 500 3x100W/865 CONC VT L1230
308
41568
6500
>80
1230x475x130
66
DALI electronic wiring 230V-50/60Hz
52040
NEW
Beta 500 3x45W/840 DALI CONC VT L870
135
20080
4000
>80
870x515x105
66
52041
NEW
Beta 500 4x50W/840 DALI CONC VT L870
205
28571
4000
>80
870x515x105
66
52042
NEW
Beta 500 3x100W/840 DALI CONC VT L1230
308
42201
4000
>80
1230x475x130
66
52046
NEW
Beta 500 3x45W/865 DALI CONC VT L870
135
19779
6500
>80
870x515x105
66
52047
NEW
Beta 500 4x50W/865 DALI CONC VT L870
205
28142
6500
>80
870x515x105
66
52048
NEW
Beta 500 3x100W/865 DALI CONC VT L1230
308
41568
6500
>80
1230x475x130
66
Construction characteristics
Illuminotechnical characteristics
Direct symmetric distribution.
Lifetime (L93/B10): 30000 h. (tq+25°C)
Lifetime (L90/B10): 50000 h. (tq+25°C)
Lifetime (L85/B10): 80000 h. (tq+25°C)
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety in compliance with IEC/TR 62778: RG0 risk exempt, (IEC 62471).
Mechanical characteristics
Housing in white painted epoxy-polyester powder aluminium.
White aluminium non-iridescent high efficiency.
Perimetrical frame in stainless steel with vandal-proof opening and stainless steel nuts and bolts.
Polyurethane foam seal, ecological, anti-aging, installed using a continuous automatic process with no joints.
Fixing bracket in stainless steel.
Electrical characteristics
In compliance with EN 60598-1.
Compliance with the EN 60598-2-22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Quick connection in polycarbonate with M20x1,5 cable gland, to access the terminal block positioned on a removable runner.
ON/OFF electronic wiring: twin-circuit for 4x50W versions 3x100W.
Source characteristics
  • Linear LED modules.
  • Colour initial tolerance (MacAdam): SDCM 3.
On request
  • different power levels, colour rendering indices and colour temperatures
  • Transparent or prismatic polycarbonate diffuser.
  • wiring: dimmable, CLO, single-circuit
  • linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology
  • emergency versions
Applications
Ambient temperature from -20°C to +45°C.
Commercial and industrial environments and warehouses.
Luminaires suitable, from a hygienic point of view, for use in production plants in the food industry (HACCP / IFS / BRC-Standard).
Installation
Ceiling mounted, suspension or busway installation.
Light Management
The device, equipped with DALI driver, can be controlled manually with 3F Easy Dim technology or automatically / manually with 3F Smart Dimming technology.
Notes
HST glass
HST glass is composed of a tempered glass sheet which has undergone a thermal stabilisation process (Heat Soak Test) which reduces the risk of spontaneous breakage caused by nickel-sulfide inclusions inside the glass.
It is not immune from harmless falling fragments, caused byshocks or, exceptionally, derived from the tempering process.
It is the user's responsibility to identify the most suitable type of diffuser for the application type.
Reducing sealing ring, dedicated to the use of cables with an external diameter of up to 8 mm.
Code
Item
A0521
Reducing sealing ring diam.8mm
Brackets for mounting of luminaire on ceiling.
Code
Item
A0861
NEW
Pair of brack. ceiling instal. Beta500
