3F Tank ATEX
Models
Characteristics
Accessories
3F Tank ATEX Lite
Code 56662
Diffuse distribution.
IP69K protection degree; IP66 ATEX applications.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56660
3F Tank Lite 2x9W/840 L675
20
2866
4000
>80
676x80
69K
56661
3F Tank Lite 2x18W/840 L1265
39
5594
4000
>80
1264x80
69K
56662
3F Tank Lite 2x22W/840 L1560
46
6900
4000
>80
1558x80
69K
56668
3F Tank Lite 2x9W/865 L675
20
5731
6500
>80
676x80
69K
56669
3F Tank Lite 2x18W/865 L1265
39
5594
6500
>80
1264x80
69K
56670
3F Tank Lite 2x22W/865 L1560
46
6900
6500
>80
1558x80
69K
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56664
3F Tank Lite 2x9W/840 DALI L675
20
2866
4000
>80
676x80
69K
56665
3F Tank Lite 2x18W/840 DALI L1265
39
5594
4000
>80
1264x80
69K
56666
3F Tank Lite 2x22W/840 DALI L1560
46
6900
4000
>80
1558x80
69K
56672
3F Tank Lite 2x9W/865 DALI L675
20
2866
6500
>80
676x80
69K
56673
3F Tank Lite 2x18W/865 DALI L1265
39
5594
6500
>80
1264x80
69K
56674
3F Tank Lite 2x22W/865 DALI L1560
46
6900
6500
>80
1558x80
69K
3F Tank ATEX Wide
Code 56678
Wide distribution.
Methacrylate (PMMA) lenses with external flat surface.
IP69K protection degree; IP66 ATEX applications.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56676
3F Tank 13W/840 WIDE L675
14.5
2173
4000
>80
676x80
69K
56677
3F Tank 45W/840 WIDE L1265
49
7231
4000
>80
1264x80
69K
56678
3F Tank 55W/840 WIDE L1560
62
9039
4000
>80
1558x80
69K
56679
3F Tank 70W/840 WIDE L1850
72
10846
4000
>80
1852x80
69K
56684
3F Tank 13W/865 WIDE L675
15
1856
6500
>80
676x80
69K
56685
3F Tank 45W/865 WIDE L1265
50
6459
6500
>80
1264x80
69K
56686
3F Tank 55W/865 WIDE L1560
62
8073
6500
>80
1558x80
69K
56687
3F Tank 70W/865 WIDE L1850
74
9688
6500
>80
1852x80
69K
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56680
3F Tank 13W/840 DALI WIDE L675
14.5
2173
4000
>80
676x80
69K
56681
3F Tank 45W/840 DALI WIDE L1265
49
7231
4000
>80
1264x80
69K
56682
3F Tank 55W/840 DALI WIDE L1560
60
9039
4000
>80
1558x80
69K
56683
3F Tank 70W/840 DALI WIDE L1850
72
10846
4000
>80
1852x80
69K
56688
3F Tank 13W/865 DALI WIDE L675
15
1856
6500
>80
676x80
69K
56689
3F Tank 45W/865 DALI WIDE L1265
50
6459
6500
>80
1264x80
69K
56690
3F Tank 55W/865 DALI WIDE L1560
62
8073
6500
>80
1558x80
69K
56691
3F Tank 70W/865 DALI WIDE L1850
74
9688
6500
>80
1852x80
69K
3F Tank ATEX Medium
Code 56694
Medium distribution.
Methacrylate (PMMA) lenses with external flat surface.
IP69K protection degree; IP66 ATEX applications.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56692
3F Tank 13W/840 MEDIUM L675
14.5
2163
4000
>80
676x80
69K
56693
3F Tank 45W/840 MEDIUM L1265
49
7197
4000
>80
1264x80
69K
56694
3F Tank 55W/840 MEDIUM L1560
62
8997
4000
>80
1558x80
69K
56695
3F Tank 70W/840 MEDIUM L1850
72
10796
4000
>80
1852x80
69K
56700
3F Tank 13W/865 MEDIUM L675
15
1847
6500
>80
676x80
69K
56701
3F Tank 45W/865 MEDIUM L1265
50
6429
6500
>80
1264x80
69K
56702
3F Tank 55W/865 MEDIUM L1560
62
8035
6500
>80
1558x80
69K
56703
3F Tank 70W/865 MEDIUM L1850
74
9643
6500
>80
1852x80
69K
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56696
3F Tank 13W/840 DALI MEDIUM L675
14.5
2163
4000
>80
676x80
69K
56697
3F Tank 45W/840 DALI MEDIUM L1265
49
7197
4000
>80
1264x80
69K
56698
3F Tank 55W/840 DALI MEDIUM L1560
60
8997
4000
>80
1558x80
69K
56699
3F Tank 70W/840 DALI MEDIUM L1850
72
10796
4000
>80
1852x80
69K
56704
3F Tank 13W/865 DALI MEDIUM L675
15
1847
6500
>80
676x80
69K
56705
3F Tank 45W/865 DALI MEDIUM L1265
50
6429
6500
>80
1264x80
69K
56706
3F Tank 55W/865 DALI MEDIUM L1560
62
8035
6500
>80
1558x80
69K
56707
3F Tank 70W/865 DALI MEDIUM L1850
74
9643
6500
>80
1852x80
69K

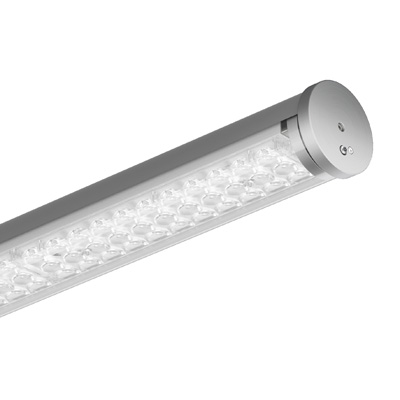

3F Tank ATEX UGR
Code 56712
L<3000 cd/m² 65°
Controlled distribution.
Average luminance <3000 cd/m² for radial angles >65°.
Methacrylate (PMMA) lenses with external flat surface.
IP69K protection degree; IP66 ATEX applications.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56708
3F Tank 35W/840 UGR L1560
35
5258
4000
>80
1558x80
69K
56709
3F Tank 40W/840 UGR L1850
41
6311
4000
>80
1852x80
69K
56712
3F Tank 35W/865 UGR L1560
39
5258
6500
>80
1558x80
69K
56713
3F Tank 40W/865 UGR L1850
47
6311
6500
>80
1852x80
69K
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56710
3F Tank 35W/840 DALI UGR L1560
35
5258
4000
>80
1558x80
69K
56711
3F Tank 40W/840 DALI UGR L1850
41
6311
4000
>80
1852x80
69K
56714
3F Tank 35W/865 DALI UGR L1560
39
5258
6500
>80
1558x80
69K
56715
3F Tank 40W/865 DALI UGR L1850
47
6311
6500
>80
1852x80
69K
3F Tank ATEX Concentrated
Code 56718
Concentrated distribution.
Methacrylate (PMMA) lenses with external flat surface.
IP69K protection degree; IP66 ATEX applications.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56716
3F Tank 13W/840 CONC L675
14.5
2191
4000
>80
676x80
69K
56717
3F Tank 45W/840 CONC L1265
49
7290
4000
>80
1264x80
69K
56718
3F Tank 55W/840 CONC L1560
62
9112
4000
>80
1558x80
69K
56719
3F Tank 70W/840 CONC L1850
72
10935
4000
>80
1852x80
69K
56724
3F Tank 13W/865 CONC L675
15
1871
6500
>80
676x80
69K
56725
3F Tank 45W/865 CONC L1265
50
6511
6500
>80
1264x80
69K
56726
3F Tank 55W/865 CONC L1560
62
8139
6500
>80
1558x80
69K
56727
3F Tank 70W/865 CONC L1850
74
9767
6500
>80
1852x80
69K
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x ø
IP
56720
3F Tank 13W/840 DALI CONC L675
14.5
2191
4000
>80
676x80
69K
56721
3F Tank 45W/840 DALI CONC L1265
49
7290
4000
>80
1264x80
69K
56722
3F Tank 55W/840 DALI CONC L1560
60
9112
4000
>80
1558x80
69K
56723
3F Tank 70W/840 DALI CONC L1850
72
10935
4000
>80
1852x80
69K
56728
3F Tank 13W/865 DALI CONC L675
15
1871
6500
>80
676x80
69K
56729
3F Tank 45W/865 DALI CONC L1265
50
6511
6500
>80
1264x80
69K
56730
3F Tank 55W/865 DALI CONC L1560
62
8139
6500
>80
1558x80
69K
56731
3F Tank 70W/865 DALI CONC L1850
74
9767
6500
>80
1852x80
69K
ILLUMINOTECHNICAL
Direct symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Lifetime (L85/B10): 50000 h. (tq+40°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
High thickness tubular body in high transparency polycarbonate surface treatment, which guarantees resistance to aggressive chemical agents.
Aluminium 6082‑T6 end caps.
Sealing gasket.
Gear‑holder reflector in hot‑dip galvanised steel, painted with white polyester base.
Fixing brackets and screws in AISI 316 stainless steel.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Quick connection via M20x1.5 cable gland in fibreglass reinforced polyamide with 2m H07RN‑F 3/5G1.5mm² cable.
INSTALLATION
Ceiling, suspension or wall installation.
APPLICATIONS
Environments with ATEX explosive atmosphere (Conformity 2014/34/UE, EN IEC 60079‑0, EN 60079‑31): Group II, Category 3D (Ex Tc IIIC T85°C Dc).
Severe Industrial Environments, food and agri‑food industries, scientific and food processing laboratories, environments with high humidity, swimming pools, railway, aeronautical and port applications.
Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
In environments with temperature from ‑20°C to +40°C with a humidity degree up to 95%, except the ones where the luminaire materials are unsuitable.
Body resistant to the following substances: Ethyl alcohol (24 hours at 20°C), aqueous detergents, hydrochloric acid (produces a slight halo), DOT4 brake oil, sulfuric acid (produces a slight halo), ammonia.
When using this data, remember that it is the result of laboratory tests, and therefore valid only under those test conditions: the data is to be considered approximate and, in the absence of practical experience, it is advisable to carry out tests under actual operating conditions.
Temperature and concentration of the chemical agent can affect materials and influence LED technology.
For applications in environments in which disturbances on the power network may be present and/or involve use at low temperatures, surge protection devices should be fitted on the power supply and any causes of undervoltages eliminated.
For specific applications please contact our technical offices.
LIGHT MANAGEMENT
The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
ON REQUEST
  • different light distributions
  • different power levels, colour rendering indices and colour temperatures
  • wiring: CLO
  • AISI 316 stainless steel end caps
  • UV Resistant versions
  • emergency versions
Code
Item
A0305
Pair of suspension brackets
Pair of AISI 316 stainless steel brackets for suspended installation.
Code
Item
A0835
Pair brack.+hooks for wall
Pair of mounting brackets and hooks for wall‑mounting, with nuts and bolts for luminaire fastening, everything in stainless steel.
This accessory must always be used in combination with pair of suspension brackets.
Code
Item
A0660
Suspension with adjustment - 1m
A0661
Suspension with adjustment - 2 m
A0662
Suspension with adjustment - 3 m
A0663
Suspension with adjustment - 4 m
A0664
Suspension with adjustment - 5 m
A0665
Suspension with adjustment - 6 m
Suspension with regulator, galvanised steel cable 1.5 mm diameter, load 15 kg.
Attention: each product requires two suspensions with regulator.
Instruments
lightUpdate
The information, at the speed of Light.
Subscribe to lightUpdate to keep in touch with 3F Filippi: news, events and product news delivered to your mailbox.
Head office and factory
3F Filippi S.p.A.
Via del Savena 28, Z.I. Piastrella
40065 Pian di Macina, Pianoro (Bologna), Italy
Tax Code. 01033260371 - VAT no. IT00529461204
Share Capital € 3,000,000 fully paid up
Bologna Register of Companies no. 01033260371
REA (economic administrative index) No. 234613

e-Mail: 3f-filippi@3f-filippi.it
Telephone: +39.051.6529611
Fax: +39.051.775884
Group
Social
lightUpdate
The information, at the speed of Light.
Subscribe to lightUpdate to keep in touch with 3F Filippi: news, events and product news delivered to your mailbox.
Cookie information
ACCEPT
This site uses only technical cookies, including third-party cookies, and does not use any profiling cookies.
In order to access the site, it is necessary to consent to the use of cookies by clicking on the "Accept" button.
For more information on how we use cookies and how to remove them, see our cookie policy.
