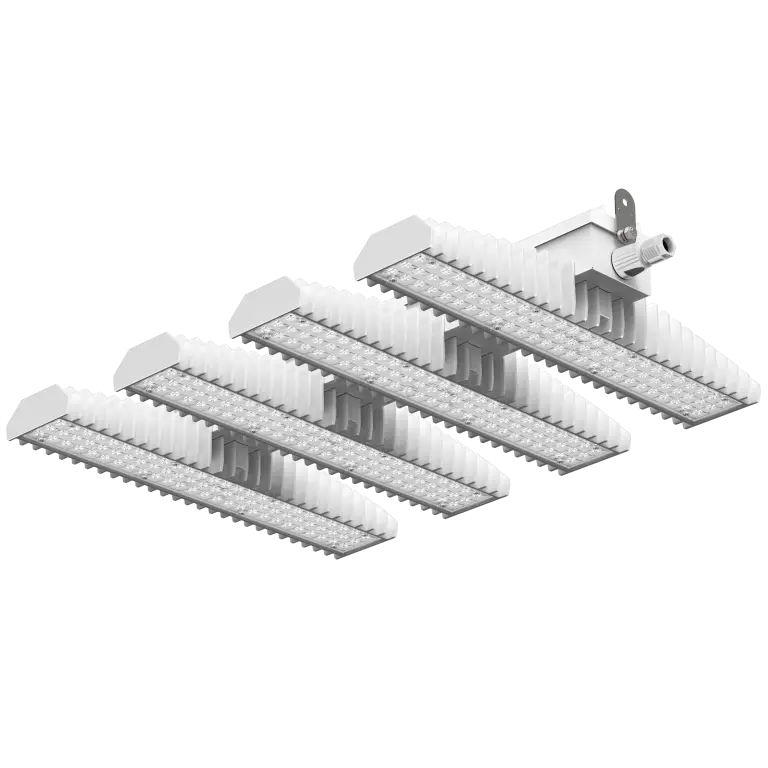

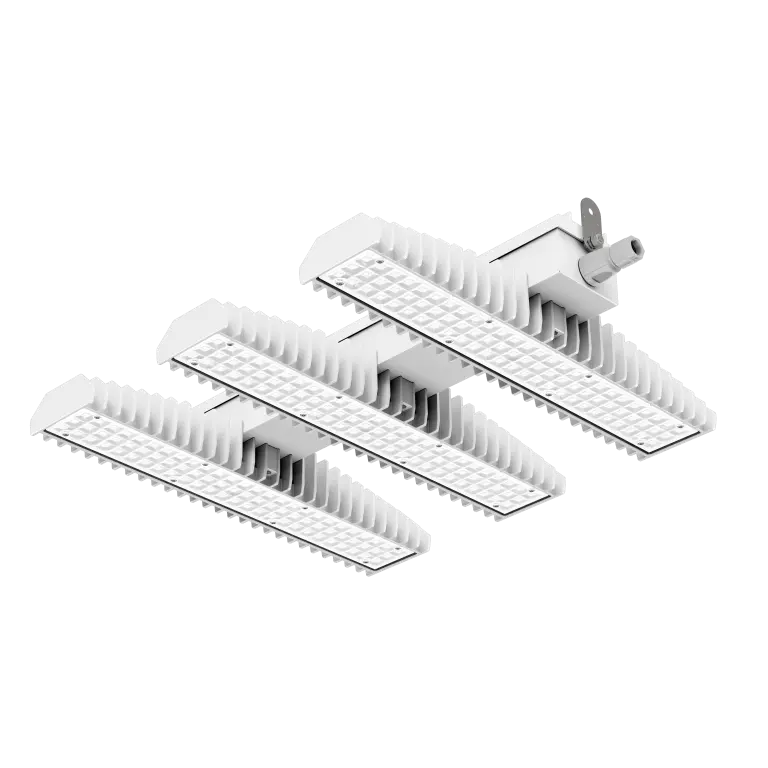

3F LEM Sport Wide
Wide distribution with rectangular shape.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
ON/OFF electronic wiring 230V‑50/60Hz
59080
3F LEM 2 SPORT LED 100 CR AMPIO
109
16738
4000
>80
470x542x129
65
59081
3F LEM 3 SPORT LED 150 CR AMPIO
165
25106
4000
>80
657x542x129
65
59082
3F LEM 4 SPORT LED 200 CR AMPIO
218
33475
4000
>80
757x542x129
65
59275
3F LEM 2 SPORT LED 100/940 CR AMPIO
109
13725
4000
>90
470x542x129
65
59276
3F LEM 3 SPORT LED 150/940 CR AMPIO
165
20587
4000
>90
657x542x129
65
59277
3F LEM 4 SPORT LED 200/940 CR AMPIO
218
27450
4000
>90
757x542x129
65
DALI electronic wiring 230V‑50/60Hz
59093
3F LEM 2 SPORT LED 100 DALI CR AMPIO
109
16738
4000
>80
470x542x129
65
59094
3F LEM 3 SPORT LED 150 DALI CR AMPIO
165
25106
4000
>80
657x542x129
65
59095
3F LEM 4 SPORT LED 200 DALI CR AMPIO
218
33475
4000
>80
757x542x129
65
59281
3F LEM 2 SPORT LED 100/940 DALI CR AMPIO
109
13725
4000
>90
470x542x129
65
59282
3F LEM 3 SPORT LED 150/940 DALI CR AMPIO
165
20587
4000
>90
657x542x129
65
59283
3F LEM 4 SPORT LED 200/940 DALI CR AMPIO
218
27450
4000
>90
757x542x129
65
Construction characteristics
Illuminotechnical characteristicsWide symmetric distribution.
Lifetime (L93/B10): 30000 h. (tq+25°C)
Lifetime (L90/B10): 50000 h. (tq+25°C)
Lifetime (L85/B10): 80000 h. (tq+25°C)
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety in compliance with IEC/TR 62778: RG0 risk exempt, (IEC 62471).
Mechanical characteristicsPassive modular heatsinks in die‑casted aluminium, painted in white colour.
To optimize the thermal management of the LED module, the heatsinks are oversized and provided with self‑cleaning of cooling fins.
Wiring body in aluminium and steel in white colour, specially strengthened, anchored solidly to the sinks and thermally separated.
3F Lens lenses with high luminous efficiency, transparent PMMA, fixed to the LED modules.
Fixing brackets in stainless steel.
Electrical characteristicsIn compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Quick connection in polycarbonate with M20x1,5 cable gland, to access the terminal block positioned on a removable runner.
Power unit positioned on a separate compartment by the LED module to ensure optimum temperatures of cabling components, to be inspectable and maintainable.
Source characteristics
- Linear LED modules.
- Colour initial tolerance (MacAdam): SDCM 3.
On request
- different powers or colour temperatures
- double quick connection
- polycarbonate lenses (IK08 ‑ 5J)
- wiring: twin‑circuit, CLO
- linear LED modules, with special protection against aggressive chemically‑volatile substances, for standard LED technology
- emergency versions
Applications
Ambient temperature from ‑30°C to +55°C.
Luminaire suitable for gyms as weel as sports, commercial, exhibition and industrial environments.
Resistance against ball impacts in accordance with DIN 18032‑3.Dry, dusty indoor environments, subject to occasional water splashes.
Warning
Luminaire not suitable for refrigeration cells.
Brackets for mounting of luminaire on ceiling or on bus ducts, stainless steel.
Code
Item
A0652
Pair of brack. ceiling instal. 3F LEM
Please note: these brackets do NOT provide free orientation of the luminaire. To allow free orientation, accessories A0651+A0632 must be installed.
Brackets for ceiling mounting, in hot‑galvanised steel painted in white polyester.
The bracket A0632 allows the luminaire to be ceiling mounted without the possibility to rotate it.
To allow free orientation, both accessories (A0651+A0632) must be installed.
Brackets for wall mounting, in in hot‑galvanised steel painted in white polyester.
The bracket A0654 allows the luminaire to be wall mounted without the possibility to rotate it.
To allow free orientation, both accessories (A0651+A0654) must be installed.
Additional bracket that, combined with the A0654 or A0632 accessories, makes it possible for the luminaires to be oriented on the ceiling or the wall, in hot‑galvanised steel painted in white polyester.
This accessory must ALWAYS be used with one of the following codes: A0632 ‑ A0654.
Brackets for rotating luminaries mounted on ceilings or on bus ducts.
Dust covers for food processing areas in white‑painted galvanised steel.
Code
Item
A0728
Cover for food appl. 3F LEM 1
For a LEM 3, for example, 3 pcs of the cod. A0733 must be ordered.
Not available for the 1+1 version.
Note: the maximum ambient operating temperatures of the fixtures decrease by 10°C in all families, except for the High Output versions in which the reduction is 5°C.
The reduction in the luminous flux emitted is equal to 3% in all models in the range.
Snap hooks clips for chain suspension, galvanised steel.
Code
Item
A0653
Pair of fixing carab.for chain instal.
Glass with gasket to protect the louvre compartment from dust.
Recommended for use in very dirty environments.
Anti‑fall safety cable Ø 2 mm for fastening the body to the building structure.
Code
Item
A0242
15SS galvanized steel cable coil 100m
The pack contains 100 metres.A0243
15BF galvanized steel cable coil 500m
The pack contains 500 metres.Coupling accessory A0714 to one of the two safety cables (A0242 or A0243) provides an anti‑fall kit fixing and adjusting the cable on the load‑bearing element of the building structure.
The cable passes between the two passage holes on the hanging brackets mounted on the 3F LEM.
Suitable for environments subject to impacts or seismic zones.
Clamp in nickel‑plated brass suitable for fixing and adjustment of galvanised steel wire (diameter 1,25 mm ‑ 1,5 mm ‑ 2 mm), complete with locking screws.
The 2 hole clamp allows to block and adjust the cable on a bearing element (part of the building) or on rounded eye bolt.
Code
Item
A0714
Clamp 2 holes susp.- 100 pcs
The pack contains 100 pieces.Reducing sealing ring, dedicated to the use of cables with an external diameter of up to 8 mm.
Code
Item
A0521
Reducing sealing ring diam.8mm
