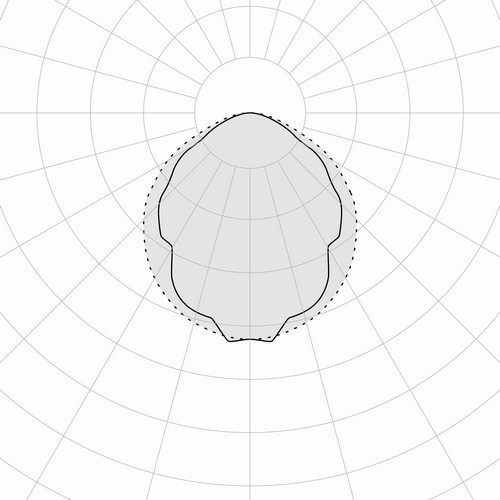

3F Cub VT
Transparent glass VT tempered, non‑combustible.
ON/OFF electronic wiring 230V‑50/60Hz, twin‑circuit
Code
Item
W
lm
K
CRI
L x A x H
IP
56330
3F CUB LED 100W CR VT
108
14957
4000
>80
680x680x187
64
56333
3F CUB LED 150W CR VT
159
22234
4000
>80
680x680x187
64
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
56332
3F CUB LED 100W DALI CR VT
108
14957
4000
>80
680x680x187
64
56335
3F CUB LED 150W DALI CR VT
159
22234
4000
>80
680x680x187
64

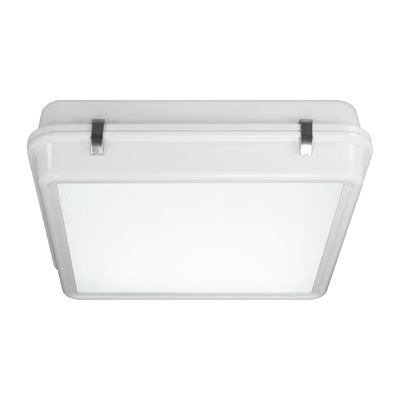

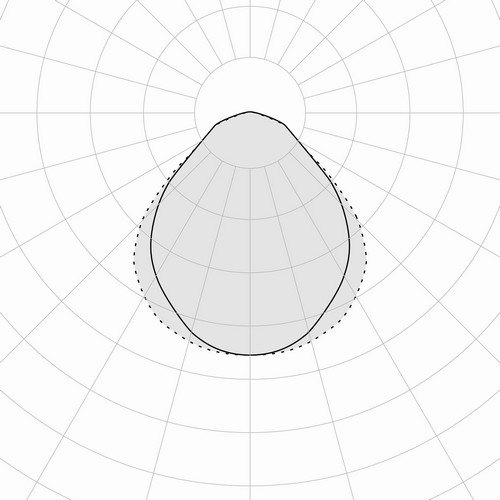

3F Cub SP
SP transparent methacrylate diffuser, prismatic outside, antiglare.
ON/OFF electronic wiring 230V‑50/60Hz, twin‑circuit
Code
Item
W
lm
K
CRI
L x A x H
IP
56344
3F CUB LED 100W CR SP
108
14098
4000
>80
680x680x187
64
56347
3F CUB LED 150W CR SP
159
20844
4000
>80
680x680x187
64
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
56346
3F CUB LED 100W DALI CR SP
108
14098
4000
>80
680x680x187
64
56349
3F CUB LED 150W DALI CR SP
159
20844
4000
>80
680x680x187
64

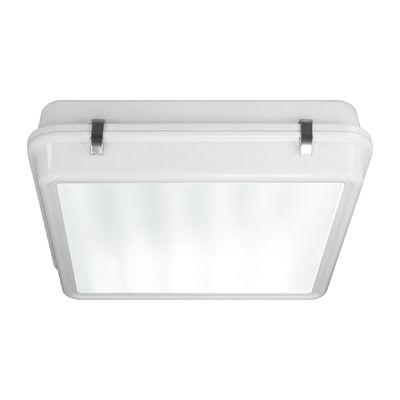

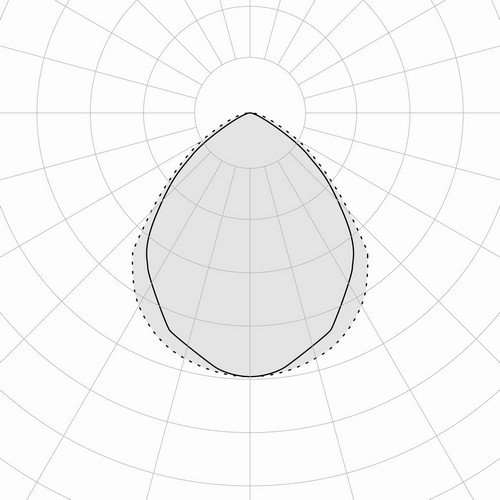

3F Cub VS
VS moulded glass, anti‑glare, tempered, non‑combustible.
ON/OFF electronic wiring 230V‑50/60Hz, twin‑circuit
Code
Item
W
lm
K
CRI
L x A x H
IP
56337
3F CUB LED 100W CR VS
108
13762
4000
>80
680x680x187
64
56340
3F CUB LED 150W CR VS
159
20415
4000
>80
680x680x187
64
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
56339
3F CUB LED 100W DALI CR VS
108
13762
4000
>80
680x680x187
64
56342
3F CUB LED 150W DALI CR VS
159
20415
4000
>80
680x680x187
64
ILLUMINOTECHNICAL
Wide symmetric distribution.
Lifetime (L70/B20): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing with double casing in pressed aluminium, powder‑coated in white epoxy‑polyester, hinged opening.
Quick connection in polycarbonate M20x1.5 cable gland for access to the terminal block.
Ecologic anti‑aging injected sealing gaskets.
Stainless steel clips.
Total flow recuperator in specular aluminium, with superficial titanium‑magnesium treatment, non‑iridescent.
Fixing bracket.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Quick connection.
INSTALLATION
Suspension mounted on a bus bar or with a chain attached to the ceiling.
For brackets see accessories.
APPLICATIONS
Environments: commercial, industrial, sports, stores, sports halls, gymnasiums.
Environments in which it is necessary a total protection against falling fragments (eg environments with foodstuffs or machines with moving parts or with extreme temperature changes), use luminaires with laminated glass.
Tempered glass is not immune to falling fragments from harmless and caused by shocks or exceptionally derived from the tempering process.
100W versionAmbient temperature from ‑20°C to +45°C.
150W versionAmbient temperature from ‑20°C to +40°C.
SP versionLuminaires suitable in production plants in the food industry (HACCP / IFS / BRC‑Standard).
LIGHT MANAGEMENT
The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
WARNING
Fixture not suitable for cold stores with an ambient temperature <0°C and/or relative humidity >85%.
ON REQUEST
- different colour rendering indices and colour temperatures
- concentrated distribution
- laminated glass
- wiring: single‑circuit, CLO
- linear LED modules, with special protection against aggressive chemically‑volatile substances, for standard LED technology
- double quick connection
- HACCP versions for use in the food industry
- retrofit LED kit
- emergency versions
Ceiling‑mounted bracket in hot‑galvanised steel.
Wire‑guard for indoor dry applications, with double fastening (wire‑guard and luminaire), for shocks coming from any directions, not transmitting the shocks to the luminaire but to the ceiling; in galvanised steel rod Ø 5 mm.
To install it, ceiling‑mounted bracket code A0213 is always necessary.
Reducing sealing ring, dedicated to the use of cables with an external diameter of up to 8 mm.
Code
Item
A0521
Reducing sealing ring diam.8mm
