Binario 3F
Aluminium extruded track with 6 copper conductors (L1/L2/L3/N/GRD/DA/DA) 16A/440V.
Code
Item




Dimensions
L x A x H
IP
A4151
Binario 3F - L1000 - WH
1000x32x38
20
A4152
Binario 3F - L2000 - WH
2000x32x38
20
A4153
Binario 3F - L3000 - WH
3000x32x38
20
A4154
Binario 3F - L4000 - WH
4000x32x38
20
A4158
Binario 3F - L1000 - GR
1000x32x38
20
A4159
Binario 3F - L2000 - GR
2000x32x38
20
A4160
Binario 3F - L3000 - GR
3000x32x38
20
A4161
Binario 3F - L4000 - GR
4000x32x38
20
A4144
Binario 3F - L1000 - BK
1000x32x38
20
A4145
Binario 3F - L2000 - BK
2000x32x38
20
A4146
Binario 3F - L3000 - BK
3000x32x38
20
A4147
Binario 3F - L4000 - BK
4000x32x38
20

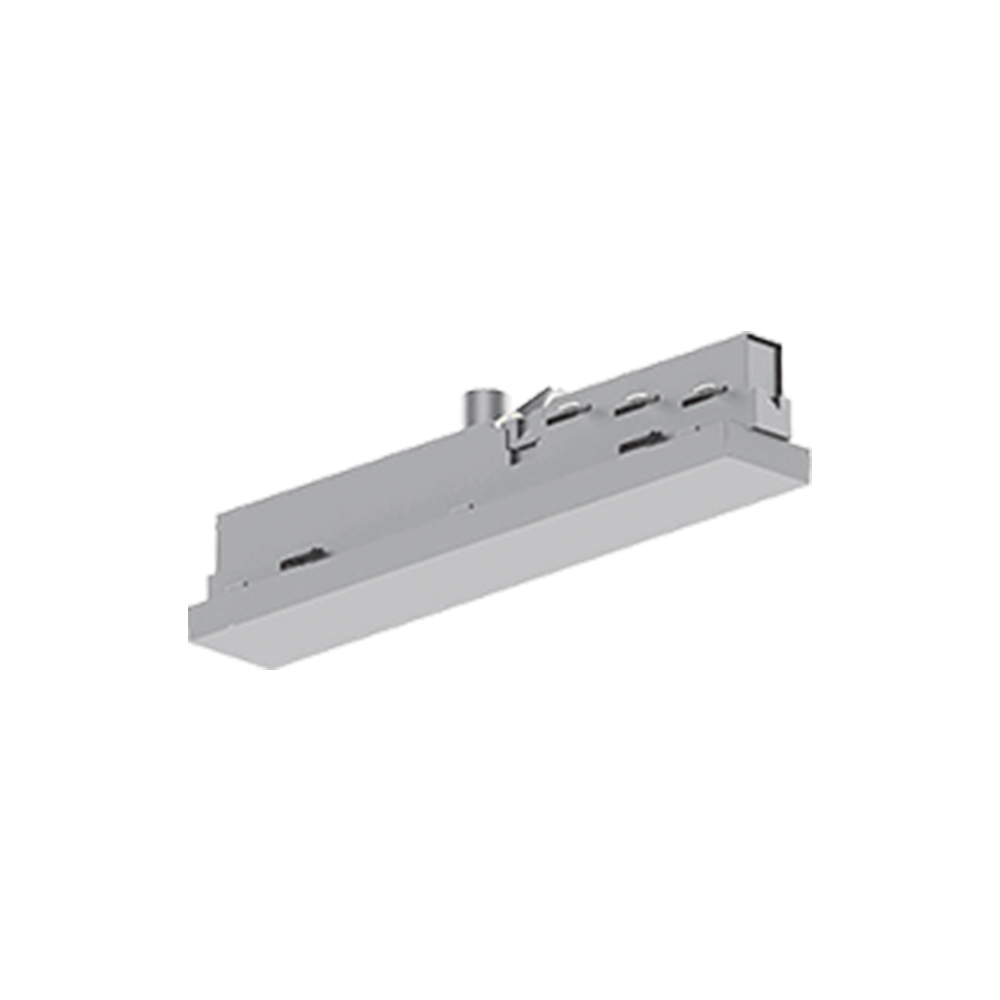

The Binario 3F is a mixed 3‑phase system with two extra conductors for the management of any signal (eg DALI).
The system is certified according to EN 60570 and its installation must be performed by qualified personnel.
Three types of fixing:
  • directly on the surface (using the holes already provided in binary)
  • surface mounted using the metal clip
  • suspended by tension steel cables and various clamps and brackets without exceeding the maximum loads are planned

1‑2‑3‑4 m length rods are supplied with copper conductors already collected as prescribed by the safety standard.
In case it is necessary to shorten the length of the track in the installation phase, after cutting use a special tool (on request) taking care to engagé the 4 conductors (L1‑L2‑L3‑N ) for at least 5 mm, so that the electrical distance and correct creepage.
Construction characteristics
Mechanical characteristics
Electrified track made from extruded aluminium, Eurostandard Plus compliant.
The wires are enclosed in rigid extruded profiles made of PVC insulating material with high dielectric strength.
Length: 1000‑2000‑3000‑4000 mm.
Available colours: white (B) and anodized aluminium (GR).

(L1/L2/L3/N/GRD/DA/DA) 16A/440V 2x1A/50V FELV AC (DALI).
Copper conductors.
Power connection: polycarbonate body and copper alloy contacts.
Warning: as the track structure is asymmetrical because of the grounding element placed laterally, feeding heads and connecting joints must be chosen accordingly.
Code
Item
A4174
Power-supply head DX - WH
Installation instructions download
A4166
Power-supply head DX - GR
Installation instructions download
A4209
Power-supply head DX - BK
Installation instructions download
A4196
Power-supply head SX - WH
Installation instructions download
A4190
Power-supply head SX - GR
Installation instructions download
A4218
Power-supply head SX - BK
Installation instructions download
Central power supply with polycarbonate body and copper alloy contacts.
Code
Item
A4175
Central power-supply - WH
Installation instructions download
A4167
Central power-supply - GR
Installation instructions download
A4210
Central power-supply - BK
Installation instructions download
Polycarbonate closing cap with locking screw.
Linear connecting element with a polycarbonate body and copper alloy contacts.
Code
Item
A4188
Linear connecting element - WH
Installation instructions download
A4182
Linear connecting element - GR
Installation instructions download
A4217
Linear connecting element - BK
Installation instructions download
Flexible connecting element with polycarbonate body and copper alloy contacts.
Code
Item
A4176
Flexible connecting element - WH
Installation instructions download
A4168
Flexible connecting element - GR
Installation instructions download
A4211
Flexible connecting element - BK
Installation instructions download
"L"‑shaped connecting element with polycarbonate body and copper alloy contacts.
Warning: as the track structure is asymmetrical because of the grounding element placed laterally, feeding heads and connecting joints must be chosen accordingly.
Code
Item
A4177
A4169
A4212
A4197
A4191
A4219
"T"‑shaped connecting element with polycarbonate body and copper alloy contacts.
Warning: as the track structure is asymmetrical because of the grounding element placed laterally, feeding heads and connecting joints must be chosen accordingly.
Code
Item
A4198
T-joint - EXT + DX - WH
Installation instructions download
A4178
T-joint - EXT + SX - WH
Installation instructions download
A4192
T-joint - EXT + DX - GR
Installation instructions download
A4170
T-joint - EXT + SX - GR
Installation instructions download
A4220
T-joint - EXT + DX - BK
Installation instructions download
A4213
T-joint - EXT + SX - BK
Installation instructions download
A4200
T-joint - INT + DX - WH
Installation instructions download
A4199
T-joint - INT + SX - WH
Installation instructions download
A4194
T-joint - INT + DX - GR
Installation instructions download
A4193
T-joint - INT + SX - GR
Installation instructions download
A4222
T-joint - INT + DX - BK
Installation instructions download
A4221
T-joint - INT + SX - BK
Installation instructions download
Cross‑shaped connecting element with polycarbonate body and copper alloy contacts.
Code
Item
PVC cover for track closing.
Code
Item
A4181
PVC closing top - L1000 - WH
Installation instructions download
A4173
PVC closing top - L1000 - GR
Installation instructions download
A4216
PVC closing top - L1000 - BK
Installation instructions download

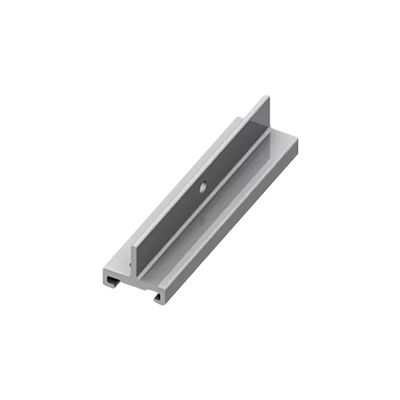

Sliding ceiling bracket with locking screw in galvanised steel.
Code
Item
A4183
Steel bracket for ceiling installation
Installation instructions download
Adjustable suspension kit with galvanised steel sliding bracket and locking screw, metal rose and steel cable with diameter of 1.5 mm.
Code
Item
A4204
Adj. susp. boss + 1.5m bracket
Installation instructions download
A4205
Adj. susp. boss + 3m bracket
Installation instructions download
A4206
Adj. susp. boss + 5m bracket
Installation instructions download
