P 250 SP
Code 12824
L<3000 cd/m² 65°
Average luminance <3000 cd/m² for radial angles >65°.
SP transparent PMMA diffuser, prismatic, anti‑glare, locked to the pre‑painted white aluminium perimeter frame with sealing gasket, hinged opening.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
12824
P 253x10W LED SP 596x596
34
4360
4000
>80
596x596x55
40
12815
P 251x30W LED SP 156x1531
34
4364
4000
>80
1531x156x55
40
12826
P 254x10W LED SP 596x596
45
5765
4000
>80
596x596x55
40
12820
P 252x24W LED SP 196x1231
54
6916
4000
>80
1231x196x55
40
12822
P 252x30W LED SP 196x1531
66
8655
4000
>80
1531x196x55
40

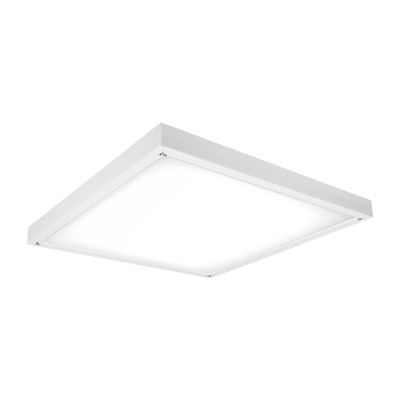

P 250 OP
OP opal PMMA flat diffuser, anti‑glare, locked to the pre‑painted white aluminium perimeter frame with sealing gasket, hinged opening.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
12844
P 253x10W LED OP 596x596
34
4080
4000
>80
596x596x55
40
12835
P 251x30W LED OP 156x1531
34
4084
4000
>80
1531x156x55
40
12846
P 254x10W LED OP 596x596
45
5405
4000
>80
596x596x55
40
12840
P 252x24W LED OP 196x1231
54
6484
4000
>80
1231x196x55
40
12842
P 252x30W LED OP 196x1531
66
8116
4000
>80
1531x196x55
40

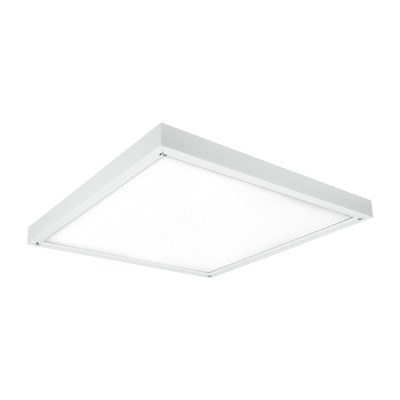

P 250 LGS
Code 12864
L<1500 cd/m² 65°
Average luminance <1500 cd/m² for radial angles >65°.
LGS micro‑prismatic flat diffuser in transparent methacrylate, multilenticular exterior, anti‑glare, locked to the white painted aluminium perimetral frame, sealing gasket, hinged opening.
Anti‑glare opal polycarbonate filter for brightness uniformity.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
12864
P 253x10W LED LGS 596x596
34
3696
4000
>80
596x596x55
40
12855
P 251x30W LED LGS 156x1531
34
3700
4000
>80
1531x156x55
40
12866
P 254x10W LED LGS 596x596
45
4894
4000
>80
596x596x55
40
12860
P 252x24W LED LGS 196x1231
54
5871
4000
>80
1231x196x55
40
12862
P 252x30W LED LGS 196x1531
66
7348
4000
>80
1531x196x55
40
ILLUMINOTECHNICAL
Direct symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SP versionAverage luminance <3000 cd/m² for radial angles >65°.
LGS versionAverage luminance <1500 cd/m² for radial angles >65°.
SOURCE
Linear LED modules.
10W versionColour initial tolerance (MacAdam): SDCM 2.
24W, 30W versionsColour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing in galvannealed steel, painted in white epoxy‑polyester.
Height only 55 mm.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
INSTALLATION
Ceiling mounted installation.
APPLICATIONS
Particularly suitable for low height environments.
SP versionEnvironments: with VDTs, offices.
Environments with exacting visual tasks, where diffused soft light for optimum visual comfort is required.
OP versionEnvironments where soft diffuse light is required for optimal visual comfort and total shielding of the source.
LGS versionEnvironments: with video terminals, representative areas, offices.
Environments with exacting visual tasks, where diffused soft light for optimum visual comfort is required.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- diffuser in SMP microprismatic PMMA or SP polycarbonate, Selfextinguishing V2
- housing in different RAL colours
- wiring: dimmable, CLO
- emergency versions
Wall‑mounting bracket, in white painted steel.
Accessory compatible with 156 mm or 196 mm wide versions.
