3F Travetta DI LGS Wireless
Average luminance <3000 cd/m² for radial angles >65°.
Light emission: direct 85%, indirect 15% .
Flow recuperator in semi‑glossy aluminium.
LGS micro‑prismatic flat diffuser in transparent methacrylate (PMMA), multi‑lenticular exterior, anti‑glare.
Anti‑glare opal polycarbonate filter for brightness uniformity.
On request, indirect emission versions enhanced.
Code
Item
W
lm
K
CRI
L x A x H
IP
3F Trav. DI 2x24W SensOFZQ LGS L1290
54
5254
4000
>80
1290x190x60
20
3F Trav. DI 2x30W SensOFZQ LGS L1590
66
6569
4000
>80
1590x190x60
20
ILLUMINOTECHNICAL

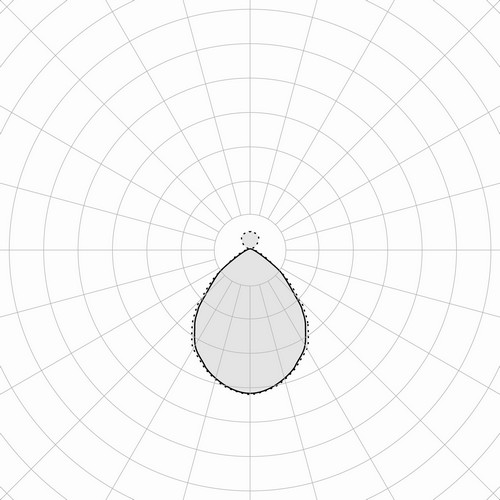

Direct‑indirect distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 2.
MECHANICAL
Housing with squared shape in white painted galvannealed steel, with nonreflecting surface.
Upper holes closing film made of opal polycarbonate.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Terminal block for cascade line connection with connection capacity 2x2.5 mm².
Multi‑sensor (light and presence) with Wireless 2.4 GHz dual Bluetooth LE/Zigbee 3.0 technology.
INSTALLATION
Suspension installation.
Thanks to the full compatibility of dimensions, fixing spacing and accessories with the previous fluorescent version, this product becomes the perfect solution for updating existing installations.
APPLICATIONS
Environments: exhibition areas, staterooms, with VDTs, halls, shops, great halls, offices.
Environments where soft diffuse light is required for optimal visual comfort.
LIGHT MANAGEMENT
Wireless BLE/ZigBee control node integrated in the luminarie.
Each device in the Zigbee 3.0 network receives, regenerates and resends the signal to subsequent devices, creating a wireless Mesh Network.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- different dimensions
- housing and accessories in different RAL colours
- emergency versions
Wall‑mounting bracket, in white painted steel.
Connecting bracket to form linear channels or branches of single luminaires, in galvanised steel with upper holes for adjustable suspensions.
Linear connecting element and for branch, between luminaires or between luminaires and wall, to form channels, in steel with accessorizable cover, white colour.
It allows the passage of the power‑supply line.
Concerning the use of connecting elements in false ceilings 600x600, see installation.
On request: elements of desired length.
Connecting elements for false ceiling 625x625.Branching in correspondence with the steel linear connecting elements with a white colour accessory cover.
It allows the passage of the power‑supply line.
The 190x190 linear connecting element can also be used for T junctions (request a bracket code A0875) and X junctions (request two brackets code A0875).
To obtain an excellent T or X junction for connecting elements of a false ceiling with 600x600 visible profiles, the combination of a 1110 mm linear element with a 460 mm junction and the combination of a 810 mm linear element with a 310 mm junction are recommended.Connecting element between luminaires or between luminaire and wall, white colour, composed of aluminium tube 1.5 m long Ø20 mm, which can be sectioned to any desired length, it allows the passage of the power‑supply line.
Linear connecting element end cap to be used when there are connecting elements at the beginning or end of a channel.
Adjustable suspension with polycarbonate case in white colour, internal bracket in galvanised steel.
Wired version with transparent power‑supply cable 5x1.5 mm².
Stainless steel cables Ø 1.25 mm, length 1 m, leaded at one end with adjusters for coupling on the luminaire.
On request: for suspensions longer than 1 m, it is necessary order stainless steel cables Ø 1,25 mm in spool of 100 m and pack of n° 100 clamps.Fixed suspension with white polycarbonate case, internal bracket in galvanised steel.
Wired version with transparent power‑supply cable 5x1.5 mm².
Ø 1.25 mm stainless steel cables leaded at the end for coupling on the luminaire.
Coil of stainless steel cable Ø 1.25 mm, length 100 m.
Clamps in nickel‑plated brass suitable for fixing of steel wire (diameter 1.25 mm 1.5 mm ‑ 2 mm), complete with locking screws.
Code
Item
A0679
5 pole rectangular rose (no cable) WH
Electric supply with white polycarbonate case, internal bracket in galvanised steel.
