3F Fosse Right
Right‑hand fixing bracket and luminaire protection in hot‑galvanised steel.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
8310
3F Fosse LED 2x6W-275 II DX
14
1160
4000
>80
255x174x360
65
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
8312
3F Fosse LED 2x6W-275 EP II DX
15
1160
4000
>80
255x174x360
65

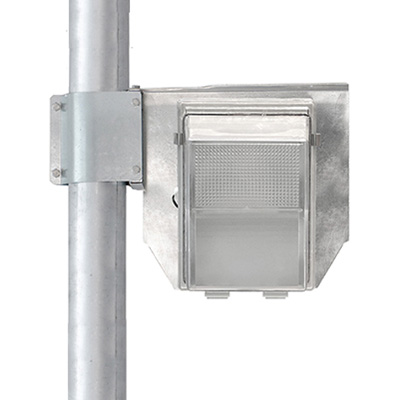

3F Fosse Left
Left‑hand fixing bracket and luminaire protection in hot‑galvanised steel.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
8311
3F Fosse LED 2x6W-275 II SX
14
1160
4000
>80
255x174x360
65
EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
8313
3F Fosse LED 2x6W-275 EP II SX
15
1160
4000
>80
255x174x360
65
ILLUMINOTECHNICAL
Asymmetric distribution upwards.
Lifetime (L85/B10): 50000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Self‑extinguishing V2 polycarbonate housing, injection moulded, RAL 7035 grey.
Diffuser in self‑extinguishing V2 polycarbonate, UV stabilised, trasparent >87%, injection moulded thickness 3÷4 mm, with smooth outer surface and differentiated anti‑glare prismatic inner surface.
Opal polycarbonate internal anti‑glare filter for lighting uniformity.
Screen lock via 4 devices and screws in AISI 304 stainless steel.
Tamper‑proof sealing.
Hand fixing bracket and luminaire protection in hot‑galvanised steel.
ELECTRICAL
Entry for power‑supply cable through IP67 M20x1,5 polyamide cable gland with Ø 5‑13 mm tightening range.
INSTALLATION
Vertical column Ø 115 mm.
APPLICATIONS
Inspection pits.
