L 340 Lite
Models
Characteristics
Accessories
L 340 Lite SP
Code 23937
L<3000 cd/m² 65°
Average luminance <3000 cd/m² for radial angles >65°.
SP transparent methacrylate diffuser, prismatic outside, antiglare.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
L 340 596x596 ‑ ON/OFF electronic wiring 230V‑50/60Hz
23937
L 343x10W/840 SP 596x596
34
4318
4000
>80
596x596x80
40
23940
L 343x12W/940 SP 596x596
43
4502
4000
>90
596x596x80
40
L 340 596x596 ‑ DALI electronic wiring 230V‑50/60Hz
23938
L 343x10W/840 DALI SP 596x596
34
4318
4000
>80
596x596x80
40
23941
L 343x12W/940 DALI SP 596x596
43
4502
4000
>90
596x596x80
40
L 340 596x596 ‑ EP maintained emergency wiring, 1hr duration with 24hrs recharge
23939
L 343x10W/840 EP SP 596x596
35
4318
4000
>80
596x596x80
40
23942
L 343x12W/940 EP SP 596x596
44
4502
4000
>90
596x596x80
40
L 340 621x621 ‑ ON/OFF electronic wiring 230V‑50/60Hz
23957
L 343x10W/840 SP 621x621
34
4318
4000
>80
621x621x80
40
23960
L 343x12W/940 SP 621x621
43
4502
4000
>90
621x621x80
40
L 340 621x621 ‑ DALI electronic wiring 230V‑50/60Hz
23958
L 343x10W/840 DALI SP 621x621
34
4318
4000
>80
621x621x80
40
23961
L 343x12W/940 DALI SP 621x621
43
4502
4000
>90
621x621x80
40
L 340 621x621 ‑ EP maintained emergency wiring, 1hr duration with 24hrs recharge
23959
L 343x10W/840 EP SP 621x621
35
4318
4000
>80
621x621x80
40
23962
L 343x12W/940 EP SP 621x621
44
4502
4000
>90
621x621x80
40
Construction characteristics
Illuminotechnical characteristics

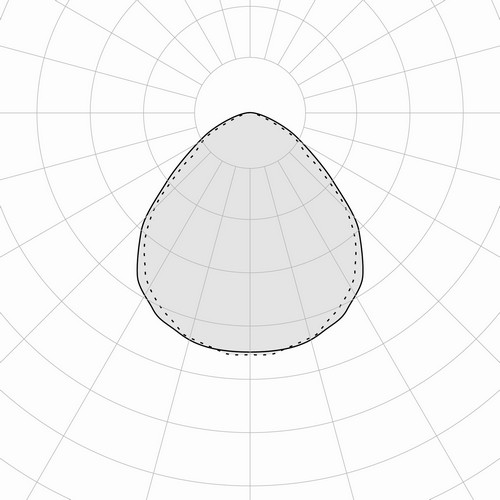

Direct symmetric distribution.
Lifetime (L93/B10): 30000 h. (tq+25°C)
Lifetime (L90/B10): 50000 h. (tq+25°C)
Lifetime (L85/B10): 80000 h. (tq+25°C)
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety in compliance with IEC/TR 62778: RG0 risk exempt, (IEC 62471).
Mechanical characteristics
Housing in hot‑galvanised steel, painted in white polyester.
Perimetral frame in white polycarbonate.
The 621x621 version is dedicated to false ceilings that have modular dimensions of 625x625.
Electrical characteristics
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
The luminaires with EP permanent emergency wiring on board comply with EN 60598‑2‑22 standard, high risk areas excluded.
Wiring on a separate unit.
Class II.
Source characteristics
  • Linear LED modules.
  • Colour initial tolerance (MacAdam): SDCM 3.
On request
  • different power levels, colour rendering indices and colour temperatures
  • wiring: CLO
  • Sensor version
  • IP65 exposed part version
  • diffuser in LGS microprismatic PMMA or SP polycarbonate, Selfextinguishing V2
  • emergency versions
Applications
Environments: with VDTs, meeting rooms, offices.
Environments: architectural, commercial, staterooms, banks.
Environments where demanding visual tasks are performed and soft diffuse light is required for optimal visual comfort and total shielding of the light source.
Luminaires suitable, from a hygienic point of view, for use in production plants in the food industry (HACCP / IFS / BRC‑Standard).
Installation
Lay‑on or pull‑up installation using the frame accessory.
Light Management
The DALI products of this family can be controlled manually with the technology 3F Easy Dim or even automatically and manually using the 3F Smart Dimming technology (refer to "Light Management").
Anti‑fall safety cable with pair of brackets for fixing the housing to the building structure.
Length 2.5 m.
Code
Item
A0579
Safety wire with brackets
Installation instructions download
Adapter frame in white‑painted steel, for installing luminaries with dimensions of 596x596 mm for pull‑up installations on plasterboard false ceilings.
Code
Item
A0798
621x621 frame + brackets
Installation instructions download
