3F Dìagon Soft UGR Wireless
Code
Item
W
lm
K
CRI
L x A x H
IP
3F Diagon 25W/830 SensOFZQ SOFT UGR 596
29
3488
4000
>90
596x596x30
43
3F Diagon 25W/840 SensOFZQ SOFT UGR 596
29
3679
4000
>90
596x596x30
43
3F Diagon 39W/930 SensOFZQ SOFT UGR 596
41
3664
4000
>90
596x596x30
43
3F Diagon 39W/940 SensOFZQ SOFT UGR 596
41
3865
4000
>90
596x596x30
43
ILLUMINOTECHNICAL

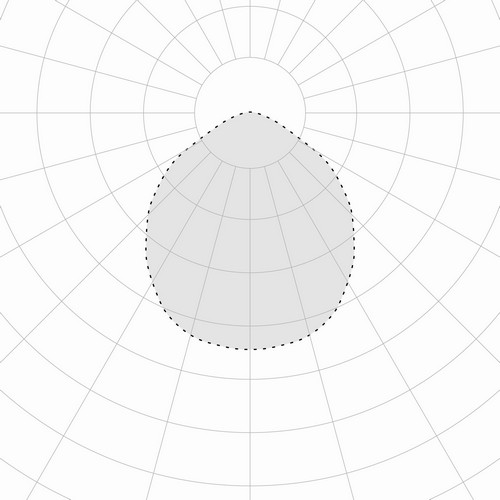

Direct symmetric distribution.
Colour temperature available /830 ‑ /840, /930 ‑ /940.
Lifetime (L75/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Squared LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing in hot‑galvanised steel, painted in white polyester.
Honeycombed diagonal screen in white anti‑glare polycarbonate.
Height only 30 mm.
Installation in false ceilings with exposed structure.
The 621x621 version is dedicated to false ceilings that have modular dimensions of 625x625.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Multi‑sensor (light and presence) with Wireless 2.4 GHz dual Bluetooth LE/Zigbee 3.0 technology.
INSTALLATION
Lay‑in installation.
APPLICATIONS
Environments where soft diffuse light is required for optimal visual comfort and total shielding of the source.
Representative environments, with video terminals, offices, meeting rooms, transit areas, reception and waiting rooms.
LIGHT MANAGEMENT
Wireless BLE/ZigBee control node integrated in the luminarie.
Each device in the Zigbee 3.0 network receives, regenerates and resends the signal to subsequent devices, creating a wireless Mesh Network.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- wiring: twin‑circuit, CLO
- Sensor version
- emergency versions
Anti‑fall safety cable for fixing the housing to the building structure.
Length 2.5 m.
White painted polyester hot‑dip galvanised steel frame for 3F Dìagon Plafone.
Height only 40 mm.
Code
Item
A0702
Suction cup for Diagon maintenance
Suction cup to extract "3F Dìagon" installed in abutment.
To be used in false ceilings with metal panels, where the space between the luminaire and the surrounding panels does not allow the use of other tools.
