3F Mirella DI SP | Matt White
NEW
Code 10926
L<3000 cd/m² 65°
PMMA primary lens for total source shielding.
Flat transparent prismatic PMMA methacrylate filter, multi-lenticular exterior, anti-glare.
Average luminance <3000 cd/m² for radial angles >65°.
Opaque white colour body and heads.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Mirella WH DI 40+8 SP L1480
58
5849
4000
>80
1480x112x91
40
3F Mirella WH DI 60+14 SP L2200
88
8907
4000
>80
2200x112x91
40
DALI electronic wiring 230V-50/60Hz
3F Mirella WH DI 40+8 DALI SP L1480
58
5849
4000
>80
1480x112x91
40
3F Mirella WH DI 60+14 DALI SP L2200
88
8907
4000
>80
2200x112x91
40
3F Mirella DI SP | Aluminium
NEW
Code 10948
L<3000 cd/m² 65°
PMMA primary lens for total source shielding.
Flat transparent prismatic PMMA methacrylate filter, multi-lenticular exterior, anti-glare.
Average luminance <3000 cd/m² for radial angles >65°.
Aluminium colour body and heads.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Mirella AL DI 40+8 SP L1480
58
5849
4000
>80
1480x112x91
40
3F Mirella AL DI 60+14 SP L2200
88
8907
4000
>80
2200x112x91
40
DALI electronic wiring 230V-50/60Hz
3F Mirella AL DI 40+8 DALI SP L1480
58
5849
4000
>80
1480x112x91
40
3F Mirella AL DI 60+14 DALI SP L2200
88
8907
4000
>80
2200x112x91
40
3F Mirella DI SP | Matt Black
NEW
Code 10904
L<3000 cd/m² 65°
PMMA primary lens for total source shielding.
Flat transparent prismatic PMMA methacrylate filter, multi-lenticular exterior, anti-glare.
Average luminance <3000 cd/m² for radial angles >65°.
Opaque black colour body and heads.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Mirella BK DI 40+8 SP L1480
58
5849
4000
>80
1480x112x91
40
3F Mirella BK DI 60+14 SP L2200
88
8907
4000
>80
2200x112x91
40
DALI electronic wiring 230V-50/60Hz
3F Mirella BK DI 40+8 DALI SP L1480
58
5849
4000
>80
1480x112x91
40
3F Mirella BK DI 60+14 DALI SP L2200
88
8907
4000
>80
2200x112x91
40
3F Mirella DI OP | Matt White
NEW
Flat opal anti-glare PMMA filter.
Opaque white colour body and heads.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Mirella WH DI 40+8 OP L1480
58
5944
4000
>80
1480x112x91
40
3F Mirella WH DI 60+14 OP L2200
88
9051
4000
>80
2200x112x91
40
DALI electronic wiring 230V-50/60Hz
3F Mirella WH DI 40+8 DALI OP L1480
58
5944
4000
>80
1480x112x91
40
3F Mirella WH DI 60+14 DALI OP L2200
88
9051
4000
>80
2200x112x91
40
3F Mirella DI OP | Aluminium
NEW
Flat opal anti-glare PMMA filter.
Aluminium colour body and heads.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Mirella AL DI 40+8 OP L1480
58
5944
4000
>80
1480x112x91
40
3F Mirella AL DI 60+14 OP L2200
88
9051
4000
>80
2200x112x91
40
DALI electronic wiring 230V-50/60Hz
3F Mirella AL DI 40+8 DALI OP L1480
58
5944
4000
>80
1480x112x91
40
3F Mirella AL DI 60+14 DALI OP L2200
88
9051
4000
>80
2200x112x91
40
3F Mirella DI OP | Matt Black
NEW
Flat opal anti-glare PMMA filter.
Opaque black colour body and heads.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Mirella BK DI 40+8 OP L1480
58
5944
4000
>80
1480x112x91
40
3F Mirella BK DI 60+14 OP L2200
88
9051
4000
>80
2200x112x91
40
DALI electronic wiring 230V-50/60Hz
3F Mirella BK DI 40+8 DALI OP L1480
58
5944
4000
>80
1480x112x91
40
3F Mirella BK DI 60+14 DALI OP L2200
88
9051
4000
>80
2200x112x91
40
Construction characteristics

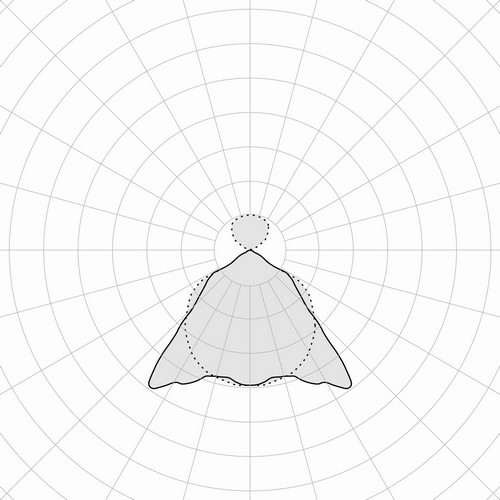

Illuminotechnical characteristicsDirect-indirect distribution.
Lifetime (L92/B10): 30000 h. (tq+25°C)
Lifetime (L85/B10): 50000 h. (tq+25°C)
Lifetime (L80/B10): 80000 h. (tq+25°C)
Lifetime (L75/B10): 100000 h. (tq+25°C)
Photobiological safety RG0 unlimited, risk exempt, in compliance with IEC 62471, IEC/TR 62778.
Mechanical characteristicsExtruded aluminium body, zamak heads.
External lens of particular aesthetic value in transparent PMMA.
Adjustable suspension fixtures with chrome studs and rapid adjusters, galvanised steel cable of 2 m long.
Electrical characteristicsIn compliance with EN 60598-1.
ON/OFF versionsTransparent 3-pole power cable with white ceiling power supply case, single ignition.
DALI versions5-pole transparent power cable with white power supply case for ceiling, single 230V circuit, 2 DALI addresses.
Source characteristics
- Linear LED modules.
- Color initial tolerance (MacAdam): SDCM 3.
On request
- different power levels, colour rendering indices and colour temperatures
- power and suspension cables of >2 m long
- twin-circuit
Applications
Environments involving accurate visual tasks where a diffused and soft light for an optimum visual comfort and the source total shielding are required.
In environments with VDTs, managerial offices and staterooms.
OP versionEnvironments where soft diffuse light is required for optimal visual comfort and total shielding of the source.
Installation
Suspension installation.
Light Management
The DALI products of this family can be controlled manually with the technology 3F Easy or even automatically and manually using the 3F Smart Dimming technology (refer to "Light Management").
