3F Mirella SP
Code 10922
L<3000 cd/m² 65°
Average luminance <3000 cd/m² for radial angles >65°.
PMMA primary lens for total source shielding.
Flat transparent prismatic PMMA methacrylate filter, multi‑lenticular exterior, anti‑glare.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10920
3F Mirella WH 40 SP L1480
46
4741
4000
>80
1480x112x91
40
10921
3F Mirella WH 60 SP L2200
66
7112
4000
>80
2200x112x91
40
10898
3F Mirella BK 40 SP L1480
46
4741
4000
>80
1480x112x91
40
10899
3F Mirella BK 60 SP L2200
66
7112
4000
>80
2200x112x91
40
10942
3F Mirella AL 40 SP L1480
46
4741
4000
>80
1480x112x91
40
10943
3F Mirella AL 60 SP L2200
66
7112
4000
>80
2200x112x91
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10922
3F Mirella WH 40 DALI SP L1480
45
4741
4000
>80
1480x112x91
40
10923
3F Mirella WH 60 DALI SP L2200
66
7112
4000
>80
2200x112x91
40
10900
3F Mirella BK 40 DALI SP L1480
45
4741
4000
>80
1480x112x91
40
10901
3F Mirella BK 60 DALI SP L2200
66
7112
4000
>80
2200x112x91
40
10944
3F Mirella AL 40 DALI SP L1480
45
4741
4000
>80
1480x112x91
40
10945
3F Mirella AL 60 DALI SP L2200
66
7112
4000
>80
2200x112x91
40

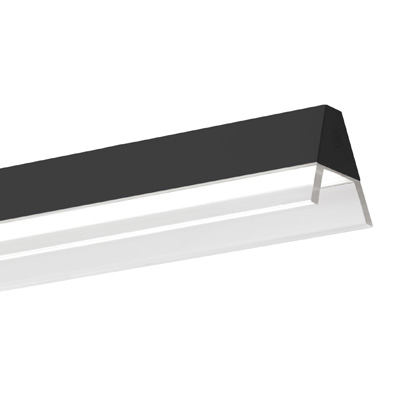

3F Mirella OP
Flat opal anti‑glare PMMA filter.
ON/OFF electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10931
3F Mirella WH 40 OP L1480
46
4845
4000
>80
1480x112x91
40
10932
3F Mirella WH 60 OP L2200
66
7268
4000
>80
2200x112x91
40
10909
3F Mirella BK 40 OP L1480
46
4845
4000
>80
1480x112x91
40
10910
3F Mirella BK 60 OP L2200
66
7268
4000
>80
2200x112x91
40
10953
3F Mirella AL 40 OP L1480
46
4845
4000
>80
1480x112x91
40
10954
3F Mirella AL 60 OP L2200
66
7268
4000
>80
2200x112x91
40
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
10933
3F Mirella WH 40 DALI OP L1480
45
4845
4000
>80
1480x112x91
40
10934
3F Mirella WH 60 DALI OP L2200
66
7268
4000
>80
2200x112x91
40
10911
3F Mirella BK 40 DALI OP L1480
45
4845
4000
>80
1480x112x91
40
10912
3F Mirella BK 60 DALI OP L2200
66
7268
4000
>80
2200x112x91
40
10955
3F Mirella AL 40 DALI OP L1480
45
4845
4000
>80
1480x112x91
40
10956
3F Mirella AL 60 DALI OP L2200
66
7268
4000
>80
2200x112x91
40
ILLUMINOTECHNICAL
Controlled symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED modules.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Extruded aluminium body, zamak heads.
External lens of particular aesthetic value in transparent PMMA.
Adjustable suspension fixtures with chrome studs and rapid adjusters, galvanised steel cable of 2 m long.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
ON/OFF versionsTransparent 3‑pole power cable with white ceiling power supply case.
DALI versionsTransparent 5‑pole power cable with white ceiling power supply case.
INSTALLATION
Suspension installation.
APPLICATIONS
Environments involving accurate visual tasks where a diffused and soft light for an optimum visual comfort and the source total shielding are required.
In environments with VDTs, managerial offices and staterooms.
OP versionEnvironments where soft diffuse light is required for optimal visual comfort and total shielding of the source.
LIGHT MANAGEMENT
The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- wiring: CLO
- power and suspension cables of >2 m long
- CRI >90 sources
- emergency versions
