3F Emilio Track Spot White
Spot lens.
Body and wired unit in white polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
47551
3F Emilio TK LED 3000/840
28,7
3067
4000
>80
130x230x105
20
47562
3F Emilio TK LED 2000/930
29,1
2462
3000
>90
130x230x105
20
47555
3F Emilio TK LED 3000/830
30,9
3106
3000
>80
130x230x105
20
47559
3F Emilio TK LED 3000/827
33,8
3142
2700
>80
130x230x105
20
47552
3F Emilio TK LED 4000/840
34,1
3961
4000
>80
130x230x105
20
47566
3F Emilio TK LED 4000/830
34,1
3807
3000
>80
130x230x105
20
47561
3F Emilio TK LED 3000/940
36,1
3137
4000
>90
130x230x105
20
47563
3F Emilio TK LED 3000/930
36,1
2868
3000
>90
130x230x105
20
3F Emilio Track Spot Black
Spot lens.
Body and wired unit in black polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
47576
3F Emilio TK BK LED 3000/840
28,7
2822
4000
>80
130x230x105
20
47587
3F Emilio TK BK LED 2000/930
29,1
2266
3000
>90
130x230x105
20
47580
3F Emilio TK BK LED 3000/830
30,9
2858
3000
>80
130x230x105
20
47591
3F Emilio TK BK LED 4000/830
34,1
3502
3000
>80
130x230x105
20
47584
3F Emilio TK BK LED 3000/827
33,8
2891
2700
>80
130x230x105
20
47577
3F Emilio TK BK LED 4000/840
34,1
3644
4000
>80
130x230x105
20
47588
3F Emilio TK BK LED 3000/930
36,1
2639
3000
>90
130x230x105
20
47586
3F Emilio TK BK LED 3000/940
36,1
2887
4000
>90
130x230x105
20
3F Emilio Track Spot White - Meat/Bread/Crisp
Spot lens.
Meat - Specific source to light up meat and cold cuts.
Bread - Specific source to light up bread.
Crisp - specific source for illuminating textile products and enhancing white colours.
Body and wired unit in white polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
47556
3F Emilio TK LED 2000/MEAT
32,2
2147
3000
87
130x230x105
20
47574
3F Emilio TK LED 2500/CRISP
32,7
2433
3000
92
130x230x105
20
47572
3F Emilio TK LED 2000/BREAD
35,1
1982
2400
>90
130x230x105
20
3F Emilio Track Spot Black - Meat/Bread/Crisp
Spot lens.
Meat - Specific source to light up meat and cold cuts.
Bread - Specific source to light up bread.
Crisp - specific source for illuminating textile products and enhancing white colours.
Body and wired unit in black polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
47581
3F Emilio TK BK LED 2000/MEAT
32,2
1975
3000
87
130x230x105
20
47599
3F Emilio TK BK LED 2500/CRISP
32,7
2238
3000
92
130x230x105
20
47597
3F Emilio TK BK LED 2000/BREAD
35,1
1823
2400
>90
130x230x105
20
3F Emilio Track Elliptical
Horizontal ELL elliptical lens provides greater installation distances.
Body and wired unit in white polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
47607
3F Emilio TK LED 3000/840 ELL
28,7
3203
4000
>80
130x230x105
20
47618
3F Emilio TK LED 2000/930 ELL
29,1
2571
3000
>90
130x230x105
20
47611
3F Emilio TK LED 3000/830 ELL
30,9
3243
3000
>80
130x230x105
20
47615
3F Emilio TK LED 3000/827 ELL
33,8
3281
2700
>80
130x230x105
20
47608
3F Emilio TK LED 4000/840 ELL
34,1
4086
4000
>80
130x230x105
20
47622
3F Emilio TK LED 4000/830 ELL
34,1
3927
3000
>80
130x230x105
20
47617
3F Emilio TK LED 3000/940 ELL
36,1
3275
4000
>90
130x230x105
20
47619
3F Emilio TK LED 3000/930 ELL
36,1
2994
3000
>90
130x230x105
20
3F Emilio Track Elliptical - Meat/Bread/Crisp
Horizontal ELL elliptical lens provides greater installation distances.
Meat - Specific source to light up meat and cold cuts.
Bread - Specific source to light up bread.
Crisp - specific source for illuminating textile products and enhancing white colours.
Body and wired unit in white polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
47612
3F Emilio TK LED 2000/MEAT ELL
32,2
2215
3000
87
130x230x105
20
47630
3F Emilio TK LED 2500/CRISP ELL
32,7
2509
3000
92
130x230x105
20
47628
3F Emilio TK LED 2000/BREAD ELL
35,1
1998
2400
>90
130x230x105
20
3F Emilio Track Iperconcentrated White

NEW
Bright anodised parabola in semi-specular, anti-reflective, anti-iridescent aluminum.
Body and wired unit in white polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
3F Emilio TK LED 3000/840 IPER
28,7
3137
4000
>80
130x230x105
20
3F Emilio TK LED 2000/930 IPER
29,1
2518
3000
>90
130x230x105
20
3F Emilio TK LED 3000/830 IPER
30,9
3176
3000
>80
130x230x105
20
3F Emilio TK LED 3000/827 IPER
33,8
3213
2700
>80
130x230x105
20
3F Emilio TK LED 4000/830 IPER
34,1
3794
3000
>80
130x230x105
20
3F Emilio TK LED 4000/840 IPER
34,1
3948
4000
>80
130x230x105
20
3F Emilio TK LED 3000/930 IPER
36,1
2933
3000
>90
130x230x105
20
3F Emilio TK LED 3000/940 IPER
36,1
3208
4000
>90
130x230x105
20
3F Emilio Track Iperconcentrated White - Meat/Bread/Crisp

NEW
Bright anodised parabola in semi-specular, anti-reflective, anti-iridescent aluminum.
Meat - Specific source to light up meat and cold cuts.
Bread - Specific source to light up bread.
Crisp - specific source for illuminating textile products and enhancing white colours.
Body and wired unit in white polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
3F Emilio TK LED 2000/MEAT IPER
32,2
2140
3000
87
130x230x105
20
3F Emilio TK LED 2500/CRISP IPER
32,7
2425
3000
92
130x230x105
20
3F Emilio TK LED 2000/BREAD IPER
35,1
1975
2400
>90
130x230x105
20

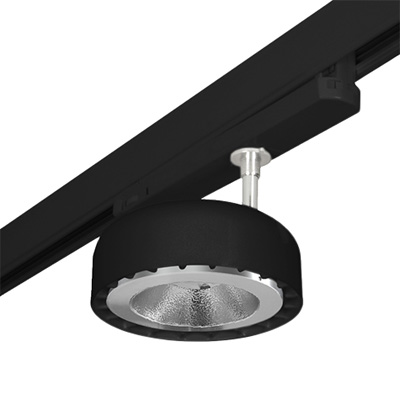

3F Emilio Track Iperconcentrated Black

NEW
Bright anodised parabola in semi-specular, anti-reflective, anti-iridescent aluminum.
Body and wired unit in black polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
3F Emilio TK BK LED 3000/840 IPER
28,7
3137
4000
>80
130x230x105
20
3F Emilio TK BK LED 2000/930 IPER
29,1
2518
3000
>90
130x230x105
20
3F Emilio TK BK LED 3000/830 IPER
30,9
3176
3000
>80
130x230x105
20
3F Emilio TK BK LED 3000/827 IPER
33,8
3213
2700
>80
130x230x105
20
3F Emilio TK BK LED 4000/830 IPER
34,1
3794
3000
>80
130x230x105
20
3F Emilio TK BK LED 4000/840 IPER
34,1
3948
4000
>80
130x230x105
20
3F Emilio TK BK LED 3000/930 IPER
36,1
2933
3000
>90
130x230x105
20
3F Emilio TK BK LED 3000/940 IPER
36,1
3208
4000
>90
130x230x105
20
3F Emilio Track Iperconcentrated Black - Meat/Bread/Crisp

NEW
Bright anodised parabola in semi-specular, anti-reflective, anti-iridescent aluminum.
Meat - Specific source to light up meat and cold cuts.
Bread - Specific source to light up bread.
Crisp - specific source for illuminating textile products and enhancing white colours.
Body and wired unit in black polycarbonate with busbar adaptor.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
Electronic wiring 230V-50/60Hz
3F Emilio TK BK LED 2000/MEAT IPER
32,2
2140
3000
87
130x230x105
20
3F Emilio TK BK LED 2500/CRISP IPER
32,7
2425
3000
92
130x230x105
20
3F Emilio TK BK LED 2000/BREAD IPER
35,1
1975
2400
>90
130x230x105
20
Construction characteristics
Illuminotechnical characteristicsSymmetrical (TK), elliptical (TK ELL) and hyperconcentrated (TK IPER) spot distribution.
Lifetime (L90/B20): 30000 h. (tq+25°C)
Lifetime (L80/B20): 50000 h. (tq+25°C)
Photobiological safety RG1, low risk, in compliance with IEC 62471, IEC/TR 62778.
Mechanical characteristicsWired unit in polycarbonate with busbar adaptor.
Single-piece in die-cast aluminium with passive dissipation with perimeter cooling slots on upper edge, giving a crown of light effect to the fitting.
Invisible lock for positioning the luminous flux.
Lens made from transparent PMMA methacrylate with glossy surface and differentiated photo-etched.
Positioning arm in galvanized brass with sphere to allow for vertical positioning at angles from 0° to 90° and horizontal positioning from 0° to 360°.
Electrical characteristicsWiring unit separate from the body, invisible and integrated into the busbar.
Class II.
Source characteristics
- Compact LED module.
- Compact LED modules, /MEAT (version for meats), /BREAD (version for bakery) /CRISP (version for wardrobe with white enhancement).
- Color initial tolerance (MacAdam): SDCM 3.
- Zhaga Book 3 compliant.
On request
- different power levels, colour rendering indices and colour temperatures
- housing in different RAL colours
Applications
Environments: commercial, museums, shops.
Installation
This product is suitable for installation on a 3-phase electrified busbar "Binario 3F".
