3F Emilio Table
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
PHASE CUT DIM electronic wiring 230V-50/60Hz
6090
3F Emilio Table WH 1000/930 PCD
14
1148
3000
>90
415x170x490
20
Construction characteristics
Illuminotechnical characteristicsDirect controlled symmetrical and indirect diffused comfort distribution (thanks to the reduction of the luminous contrast between the product and the surrounding environment).
Lifetime (L90/B20): 30000 h. (tq+25°C)
Lifetime (L80/B20): 50000 h. (tq+25°C)
Photobiological safety in compliance with IEC/TR 62778: RG0 risk exempt, (IEC 62471).

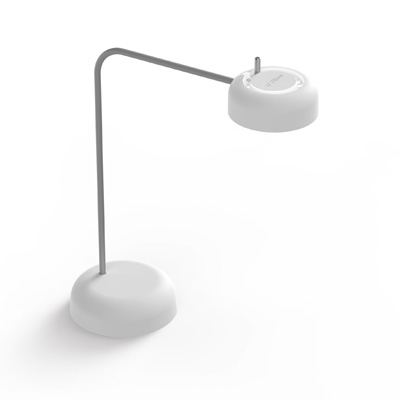

Mechanical characteristicsDiffuser in die-cast aluminium, opaque white, with upper rings with a luminous crown effect and an orientation arm.
Diffuser adjustability: 90° along the horizontal axis and 290° on the stem axis.
PMMA opal methacrylate lens.
Round stem in painted steel.
Round shaped base in aluminium and painted steel.
Electrical characteristicsIn compliance with EN 60598-1.
Dimmer button installed on the 2 m long power cable with 2x10A plug.
Class II.
Source characteristics
- Compact LED module.
- Colour initial tolerance (MacAdam): SDCM 3.
- Zhaga Book 3 compliant.
On request
- LED module with different power levels, colour temperatures and colour rendering index
- housing in different RAL colours
Applications
Environments which cannot, for technical reasons, be equipped with points of light directed onto the ceiling.
Open-space offices and environments in which a high degree of workstation flexibility is required.
Environments: staterooms, with VDTs, offices.
Environments where soft diffuse light is required for optimal visual comfort.
Installation
Table installation.
