Products
 |
 |
 |
L 480
Models
Characteristics
Accessories
L 480 GSP
Flat prismatic diffuser in methacrylate with low luminance film
Code 22771
L<3000 cd/m² 65°
Average luminance <3000 cd/m² for angles >65°.
SP transparent methacrylate diffuser, prismatic outside, antiglare.
Anti-glare opal polycarbonate filter for brightness uniformity.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
22767
NEW
L 480 24W LED GSP 80x1210
28
2347
4000
>80
1210x80x95
40
22768
NEW
L 480 30W LED GSP 80x1510
35
2937
4000
>80
1510x80x95
40
DALI electronic wiring 230V-50/60Hz
22770
NEW
L 480 24W LED DALI GSP 80x1210
28
2347
4000
>80
1210x80x95
40
22771
NEW
L 480 30W LED DALI GSP 80x1510
35
2937
4000
>80
1510x80x95
40

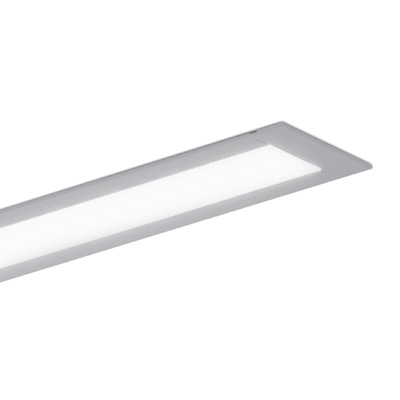

L 480 OP
Opal diffuser
Code 22777
OP opal methacrylate flat diffuser, anti-glare.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
22773
NEW
L 480 24W LED OP 80x1210
28
2699
4000
>80
1210x80x95
40
22774
NEW
L 480 30W LED OP 80x1510
35
3378
4000
>80
1510x80x95
40
DALI electronic wiring 230V-50/60Hz
22776
NEW
L 480 24W LED DALI OP 80x1210
28
2699
4000
>80
1210x80x95
40
22777
NEW
L 480 30W LED DALI OP 80x1510
35
3378
4000
>80
1510x80x95
40
Construction characteristics
Illuminotechnical characteristics
Direct symmetric distribution.
Lifetime (L93/B10): 30000 h. (tq+25°C)
Lifetime (L90/B10): 50000 h. (tq+25°C)
Lifetime (L85/B10): 80000 h. (tq+25°C)
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778.
Mechanical characteristics
Housing in hot-galvanized steel, painted white.
Removable gear-tray, functions as flux recuperator.
Pair of quick regulators for suspended installation (steel cable to be ordered separately).
Electrical characteristics
In compliance with EN 60598-1.
Quick connection of the power supply from the outside of the body with the possibility of cascade connection in / out.
Source characteristics
  • Linear LED module.
  • Color initial tolerance (MacAdam): SDCM 3.
On request
  • different power levels, colour rendering indices and colour temperatures
  • wiring: CLO
  • mounting brackets
Applications
Environments: with VDTs, meeting rooms, offices.
Environments: architectural, commercial, staterooms, banks.
OP version
Environments where dynamic, soft and diffuse light is required for optimal visual comfort.
Installation
Pull-up recessed fitting, to be used with inspectable false-ceilings.
Light Management
The DALI products of this family can be controlled manually with the technology 3F Easy Dim or even automatically and manually using the 3F Smart Dimming technology (refer to "Light Management").
Suspension without controller, galvanized steel cable 1.5 mm diameter, load 15 kg.
Code
Item
A20485
Susp. without adjustment for Linux/HD - 0,5 m
A20486
Susp. without adjustment for Linux/HD - 1 m
A20487
Susp. without adjustment for Linux/HD - 2 m
A20488
Susp. without adjustment for Linux/HD - 3 m
A20489
Susp. without adjustment for Linux/HD - 4 m
A20490
Susp. without adjustment for Linux/HD - 5 m
A20491
Susp. without adjustment for Linux/HD - 6 m
Galvanized steel cable, diameter 1.5 mm, composed of 49 wires.
15 kg capacity (ratio 5:1).
Code
Item
A0716
Coil galvanized cable diam. 1.5mm - 100m
The pack contains 100 metres.
A0717
Coil galvanized cable diam. 1.5mm - 500m
The pack contains 500 metres.
A0718
Coil galvanized cable diam. 1.5mm - 1000m
The pack contains 1000 metres.
Clamp in nickel-plated brass suitable for fixing and adjustment of galvanized steel wire (diameter 1,25 mm - 1,5 mm - 2 mm), complete with locking screws.
The 2 hole clamp allows to block and adjust the cable on a bearing element (part of the building) or on rounded eye bolt.
Code
Item
A0714
Clamp 2 holes - 100 pcs
The pack contains 100 pieces.
Clamp suitable for fixing and adjustment of galvanized steel wire (diameter 1.5 mm), with quick adjustment through unlock buttons.
The clamp with 2 holes allow to fix and adjust the cable on the carrier structural element (belonging to the building) or with eye screw fixing.
Code
Item
A0659
Adjustable clamp 2 holes - 10 pcs
The pack contains 10 pieces.
