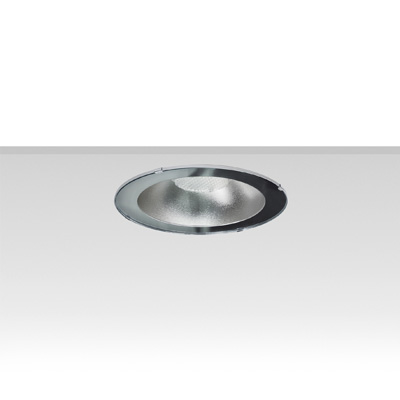

Galassia 220 VT
Code 37802
L<1000 cd/m² 65°
Average luminance <1000 cd/m² for radial angles >65°.
Parabolic louvre in polished anodised aluminium, anti‑glare, non‑iridescent.
Circular anti‑glare LED shielding lens in opal PMMA for good visual comfort.
VT transparent glass, tempered, not flammable, locked and in line with the trim.
It does not allow the access of the insects into the luminous compartment, avoiding unpleasant visual effects and extraordinary maintenance.
ON/OFF electronic wiring 230V‑50/60Hz
37759
Galassia 220 LED 2000 VT
20
2081
4000
>80
221x103
44
37802
Galassia 220 LED 3000 VT
28
2792
4000
>80
221x103
44
37834
Galassia 220 LED 4000 VT
36
3537
4000
>80
221x151
44
DALI electronic wiring 230V‑50/60Hz
37760
Galassia 220 LED 2000 DALI VT
20
2081
4000
>80
221x103
44
37803
Galassia 220 LED 3000 DALI VT
28
2792
4000
>80
221x103
44
37836
Galassia 220 LED 4000 DALI VT
36
3537
4000
>80
221x151
44
EP maintained emergency wiring, 1hr duration with 24hrs recharge
37761
Galassia 220 LED 2000 EP VT
21
2081
4000
>80
221x103
44
37804
Galassia 220 LED 3000 EP VT
29
2792
4000
>80
221x103
44

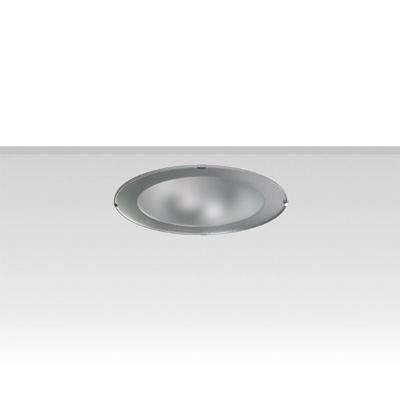

Galassia 220 VS
2000 ‑ Average luminance <3000 cd/m² for radial angles >65°.
Parabolic louvre in polished anodised aluminium, anti‑glare, non‑iridescent.
Anti‑glare microprismatic VS moulded glass, tempered, not flammable, locked and in line with the trim.
It does not allow the access of the insects into the luminous compartment, avoiding unpleasant visual effects and extraordinary maintenance.
ON/OFF electronic wiring 230V‑50/60Hz
37777
Galassia 220 LED 2000 VS
20
2330
4000
>80
221x103
44
37820
Galassia 220 LED 3000 VS
28
3127
4000
>80
221x103
44
37838
Galassia 220 LED 4000 VS
36
3961
4000
>80
221x151
44
DALI electronic wiring 230V‑50/60Hz
37778
Galassia 220 LED 2000 DALI VS
20
2330
4000
>80
221x103
44
37821
Galassia 220 LED 3000 DALI VS
28
3127
4000
>80
221x103
44
37840
Galassia 220 LED 4000 DALI VS
36
3961
4000
>80
221x151
44
EP maintained emergency wiring, 1hr duration with 24hrs recharge
37779
Galassia 220 LED 2000 EP VS
21
2330
4000
>80
221x103
44
37822
Galassia 220 LED 3000 EP VS
29
3127
4000
>80
221x103
44

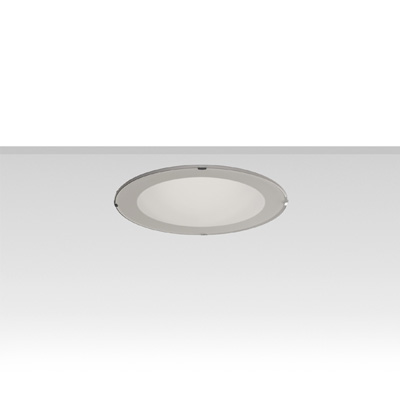

Galassia 220 VOP
Parabolic louvre in polished anodised aluminium, anti‑glare, non‑iridescent.
Glazed OP opal glass, tempered, non‑combustible, locked in line with the trim.
It does not allow the access of the insects into the luminous compartment, avoiding unpleasant visual effects and extraordinary maintenance.
ON/OFF electronic wiring 230V‑50/60Hz
37768
Galassia 220 LED 2000 VOP
20
1434
4000
>80
221x103
44
37811
Galassia 220 LED 3000 VOP
28
1925
4000
>80
221x103
44
37842
Galassia 220 LED 4000 VOP
36
2438
4000
>80
221x151
44
DALI electronic wiring 230V‑50/60Hz
37769
Galassia 220 LED 2000 DALI VOP
20
1434
4000
>80
221x103
44
37812
Galassia 220 LED 3000 DALI VOP
28
1925
4000
>80
221x103
44
37844
Galassia 220 LED 4000 DALI VOP
36
2438
4000
>80
221x151
44
EP maintained emergency wiring, 1hr duration with 24hrs recharge
37770
Galassia 220 LED 2000 EP VOP
21
1434
4000
>80
221x103
44
37813
Galassia 220 LED 3000 EP VOP
29
1925
4000
>80
221x103
44

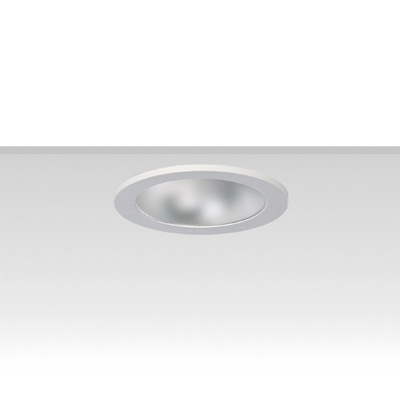

Galassia 220 AB VS
2000 ‑ Average luminance <3000 cd/m² for radial angles >65°.
AB trim in white moulded Bayblend.
Parabolic louvre in polished anodised aluminium, anti‑glare, non‑iridescent.
Anti‑glare microprismatic VS moulded glass, tempered, not flammable, locked and in line with the trim.
It does not allow the access of the insects into the luminous compartment, avoiding unpleasant visual effects and extraordinary maintenance.
ON/OFF electronic wiring 230V‑50/60Hz
37551
Galassia 220 LED AB 2000 VS
20
2330
4000
>80
226x103
44
37587
Galassia 220 LED AB 3000 VS
28
3127
4000
>80
226x103
44
37604
Galassia 220 LED AB 4000 VS
36
3961
4000
>80
226x151
44
DALI electronic wiring 230V‑50/60Hz
37552
Galassia 220 LED AB 2000 DALI VS
20
2330
4000
>80
226x103
44
37588
Galassia 220 LED AB 3000 DALI VS
28
3127
4000
>80
226x103
44
37606
Galassia 220 LED AB 4000 DALI VS
36
3961
4000
>80
226x151
44
EP maintained emergency wiring, 1hr duration with 24hrs recharge
37553
Galassia 220 LED AB 2000 EP VS
21
2330
4000
>80
226x103
44
37589
Galassia 220 LED AB 3000 EP VS
29
3127
4000
>80
226x103
44

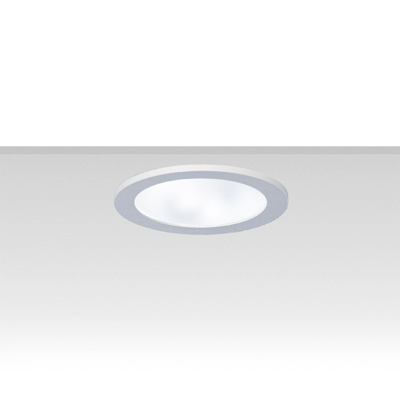

Galassia 220 AB VOP
AB trim in white moulded Bayblend.
Parabolic louvre in polished anodised aluminium, anti‑glare, non‑iridescent.
Glazed OP opal glass, tempered, non‑combustible, locked in line with the trim.
It does not allow the access of the insects into the luminous compartment, avoiding unpleasant visual effects and extraordinary maintenance.
ON/OFF electronic wiring 230V‑50/60Hz
37542
Galassia 220 LED AB 2000 VOP
20
1434
4000
>80
226x103
44
37578
Galassia 220 LED AB 3000 VOP
28
1925
4000
>80
226x103
44
37608
Galassia 220 LED AB 4000 VOP
36
2438
4000
>80
226x151
44
DALI electronic wiring 230V‑50/60Hz
37543
Galassia 220 LED AB 2000 DALI VOP
20
1434
4000
>80
226x103
44
37579
Galassia 220 LED AB 3000 DALI VOP
28
1925
4000
>80
226x103
44
37610
Galassia 220 LED AB 4000 DALI VOP
36
2438
4000
>80
226x151
44
EP maintained emergency wiring, 1hr duration with 24hrs recharge
37544
Galassia 220 LED AB 2000 EP VOP
21
1434
4000
>80
226x103
44
37580
Galassia 220 LED AB 3000 EP VOP
29
1925
4000
>80
226x103
44
ILLUMINOTECHNICAL
Direct symmetric distribution.
Lifetime (L70/B10): 80000 h. (tq+25°C)
Photobiological safety RG1.
SOURCE
Compact LED module.
Colour initial tolerance (MacAdam): SDCM 3.
Zhaga Book 3 compliant.
MECHANICAL
Housing and fixing brackets in galvanised steel.
Passive heat dissipator in anodised aluminium, oversized, for optimum thermal management of the LED module.
Parabolic louvre in polished anodised aluminium, anti‑glare, non‑iridescent.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
The luminaires with EP permanent emergency wiring on board comply with EN 60598‑2‑22 standard, high risk areas excluded.
Wiring on a separate unit.
Class II.
INSTALLATION
Pull‑up installation.
APPLICATIONS
Environments: architectural, commercial, exhibition areas, transit areas, corridors, shops, display windows.
In false ceilings with narrow voids.
LIGHT MANAGEMENT
The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- wiring: CLO
- CRI >90 sources
- emergency versions
Reinforcing bracket for panels 600x600, 600x1200 with exposed structure, in hot‑galvanised steel.
Anti‑rotation adapter for grilled ceiling with closing mats (always suggested to avoid stray light).
Adapter made in steel white colour, RAL 9010.
On request: RAL colour.
Bracket size 289x289 mm for 50x50, 75x75, 100x100 mesh, slat 10 mm thick.
Reinforcing bracket for metal panels 600x600 with concealed structure, in hot‑galvanised steel.
