3F Emilio R Spot
Spot lens.
Lens made from transparent PMMA methacrylate with glossy surface and differentiated photo-etched.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x H
IP
ON/OFF electronic wiring 230V-50/60Hz
21720
3F Emilio R LED 2000/840 SPOT
19
2189
4000
>80
193x95
20
21721
3F Emilio R LED 2000/930 SPOT
23
2000
3000
>90
193x95
20

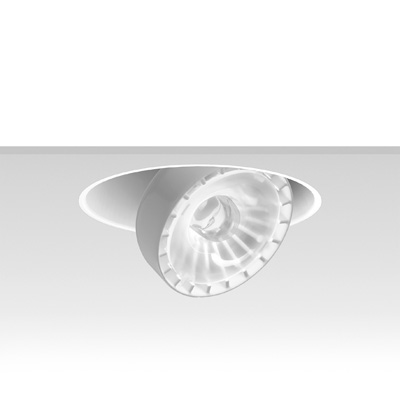

3F Emilio R Elliptical
Horizontal ELL elliptical lens provides greater installation distances.
Lens made from transparent PMMA methacrylate with glossy surface and differentiated photo-etched.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x H
IP
ON/OFF electronic wiring 230V-50/60Hz
21728
3F Emilio R LED 2000/840 ELL
19
2484
4000
>80
193x95
20
21729
3F Emilio R LED 2000/930 ELL
23
2270
3000
>90
193x95
20

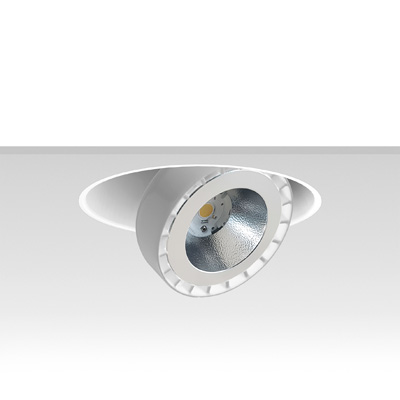

3F Emilio R Iperconcentrated
Bright anodised parabola in semi-specular, anti-reflective, anti-iridescent aluminum.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x H
IP
ON/OFF electronic wiring 230V-50/60Hz
21736
3F Emilio R LED 2000/840 IPER
19
2433
4000
>80
193x95
20
21737
3F Emilio R LED 2000/930 IPER
23
2223
3000
>90
193x95
20
21744
3F Emilio R LED 3000/840 IPER
28
3216
4000
>80
193x95
20
Construction characteristics
Illuminotechnical characteristicsVertical distribution adjustable from 0° to 70°.
Lifetime (L90/B20): 30000 h. (tq+25°C)
Lifetime (L80/B20): 50000 h. (tq+25°C)
Photobiological safety in compliance with IEC/TR 62778: RG1 low risk, (IEC 62471).
Mechanical characteristicsSingle-piece in die-cast aluminium with passive dissipation with perimeter cooling slots on upper edge, giving a crown of light effect to the fitting.
Invisible lock for positioning the luminous flux.
Positioning arm in galvanized brass with sphere to allow for vertical positioning at angles from 0° to 65° and horizontal positioning from 0° to 360°.
Fastening spring clips in stainless steel.
Electrical characteristicsIn compliance with EN 60598-1.
Wiring on a separate unit.
Class II.
Source characteristics
- Compact LED module.
- Color initial tolerance (MacAdam): SDCM 3.
- Zhaga Book 3 compliant.
On request
- different power levels, colour rendering indices and colour temperatures
- housing in different RAL colours
- wiring: dimmable
- luminaire compliant with EN 60598-2-22 for centralized emergency systems, excluding high risk areas
Applications
Environments: commercial, museums, shops.
Installation
Pull-up installation.
