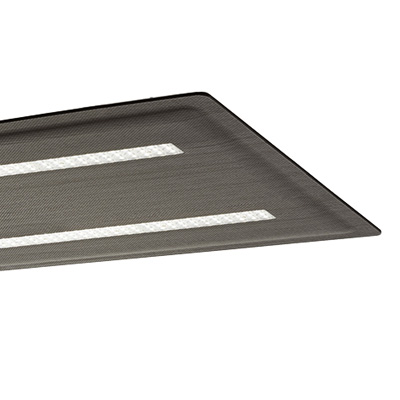

3F Sound Lux DI | Black Forest
NEW
Code 6013
L<3000 cd/m² 65°
Direct-indirect distribution.
Average luminance <3000 cd/m² for radial angles >65°.
Body with a black forest finish.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
DALI electronic wiring 230V-50/60Hz
3F Sound Lux 450 RE DI 35+8/930 DALI
47
4981
3000
>90
1780x450x43
40
3F Sound Lux 900 RE DI 70+16/930 DALI
94
9962
3000
>90
1780x900x43
40

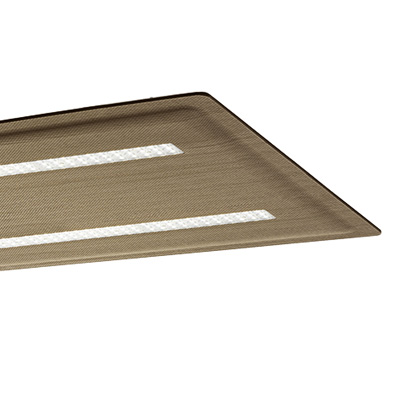

3F Sound Lux DI | Walnut
NEW
Code 6017
L<3000 cd/m² 65°
Direct-indirect distribution.
Average luminance <3000 cd/m² for radial angles >65°.
Body with a walnut finish.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
3F Sound Lux 450 RS DI 35+8/930 DALI
47
4981
3000
>90
1780x450x43
40
3F Sound Lux 900 RS DI 70+16/930 DALI
94
9962
3000
>90
1780x900x43
40
Construction characteristics
Illuminotechnical characteristicsDirect-indirect distribution.
Lifetime (L92/B10): 30000 h. (tq+25°C)
Lifetime (L85/B10): 50000 h. (tq+25°C)
Lifetime (L80/B10): 80000 h. (tq+25°C)
Lifetime (L75/B10): 100000 h. (tq+25°C)
Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778.
Acoustic3F Sound Lux acoustic panel covers a range of frequencies from 500 to 5000 Hz, with exceptional results in the range from 1000 to 1250 Hz where it reaches a value of 99%.
Certified as class A, (UNI EN ISO 11654) in the speech spectrum in octave bands from 1000 to 4000 Hz.
Mechanical characteristicsThe lighting fixture consists of an acoustic panel covered by a micro-perforated layer of natural wood.
Hot-galvanized steel lighting unit coated with a polyester based paint enclosed in a stainless steel casing.
Transparent methacrylate controlled distribution lenses with flat external surface.
Suspensions fitted with chrome bosses and quick-acting regulator, 2 m galvanized steel cable.
Electrical characteristicsIn compliance with EN 60598-1.
5-pole transparent power cable with white ceiling power supply box, single 230V circuit, 2 DALI addresses (versions 450) and 4 DALI addresses (versions 900).
Source characteristics
- Linear LED modules.
- Color initial tolerance (MacAdam): SDCM 3.
On request
- different power levels, colour rendering indices and colour temperatures
- body with a tobacco finish
Applications
Environments with video terminals, executive, open space and representative offices.
Installation
Suspension installation.
Light Management
The DALI products of this family can be controlled manually with the technology 3F Easy or even automatically and manually using the 3F Smart Dimming technology (refer to "Light Management").
