L 490 GSP
Code 21924
L<3000 cd/m² 65°
Average luminance <3000 cd/m² for radial angles >65°.
SP transparent methacrylate (PMMA) diffuser, prismatic outside, antiglare.
Anti‑glare opal polycarbonate filter for brightness uniformity.
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
L 490 12W LED DALI GSP 125x625
14
1326
4000
>80
625x125x65
43
L 490 24W LED DALI GSP 125x1225
27
2504
4000
>80
1225x125x65
43
L 490 30W LED DALI GSP 125x1525
33.5
3134
4000
>80
1525x125x65
43
DALI ‑ EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
L 490 12W LED DALI EP GSP 125x625
15
1326
4000
>80
625x125x65
43
L 490 24W LED DALI EP GSP 125x1225
28
2504
4000
>80
1225x125x65
43
L 490 30W LED DALI EP GSP 125x1525
34.5
3134
4000
>80
1525x125x65
43

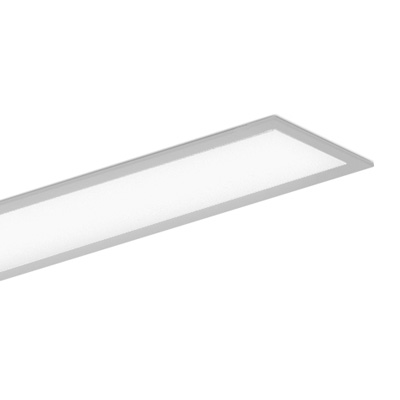

L 490 OP
OP opal methacrylate (PMMA) flat diffuser, anti‑glare.
DALI electronic wiring 230V‑50/60Hz
Code
Item
W
lm
K
CRI
L x A x H
IP
L 490 12W LED DALI OP 125x625
14
1475
4000
>80
625x125x65
43
L 490 24W LED DALI OP 125x1225
27
2786
4000
>80
1225x125x65
43
L 490 30W LED DALI OP 125x1525
33.5
3487
4000
>80
1525x125x65
43
DALI ‑ EP maintained emergency wiring, 1hr duration with 24hrs recharge
Code
Item
W
lm
K
CRI
L x A x H
IP
L 490 12W LED DALI EP OP 125x625
15
1475
4000
>80
625x125x65
43
L 490 24W LED DALI EP OP 125x1225
28
2786
4000
>80
1225x125x65
43
L 490 30W LED DALI EP OP 125x1525
34.5
3487
4000
>80
1525x125x65
43
ILLUMINOTECHNICAL
Direct symmetric distribution.
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0.
SOURCE
Linear LED module.
Colour initial tolerance (MacAdam): SDCM 3.
MECHANICAL
Housing in steel painted in white epoxy‑polyester.
ELECTRICAL
In compliance with EN 60598‑1.
Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website.
Quick connection of the power supply from the outside of the body with the possibility of cascade connection in / out.
Wiring on a separate unit.
Class II.
INSTALLATION
Pull‑up installation with brackets.
APPLICATIONS
Environments: with VDTs, meeting rooms, offices.
Environments: architectural, commercial, staterooms, banks.
OP versionEnvironments where dynamic, soft and diffuse light is required for optimal visual comfort.
LIGHT MANAGEMENT
The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
ON REQUEST
- different power levels, colour rendering indices and colour temperatures
- wiring: ON‑OFF, CLO
Code
Item
A0173
15HI Brackets - L320-L350-L450
The pack contains 4 pieces.Galvanised steel fixing bracket for pull‑up installation on plasterboard.
Pack for 1 luminaire.
Excursion min. 0 mm, max. 20 mm.Code
Item
A0177
15ZH Brackets - L320-L350-L560
The pack contains 4 pieces.Fixing bracket in galvanised steel.
Pack for 1 luminaire.
Excursion min. 20 mm, max. 40 mm.
