3F HD OCW Channel
Optics Control White - LEED certification
Code 6255
L<2500 cd/m² 45°
Average luminance <2500 cd/m² for angles >45°.
Average luminance <1500 cd/m² for angles >65°.
Environments with very exacting visual tasks and control of luminance at angles of >45° compared to the LEED certification.
Offices with video terminals and administrative, information and school offices.
Transparent methacrylate lenses with different facets to optimise the direction of the luminous flux.
Anti-reflective white polycarbonate alveolar optic.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
3F HD 50 - DALI electronic wiring 230V-50/60Hz
6254
3F HD50 WH 12/835 DALI 5P OCW L1174
13.5
1593
3500
>80
1174x57x80
40
6255
3F HD50 WH 15/835 DALI 5P OCW L1468
17
1991
3500
>80
1468x57x80
40
6259
3F HD50 WH 30/835 DALI 5P OCW L2935
33
3981
3500
>80
2935x57x80
40

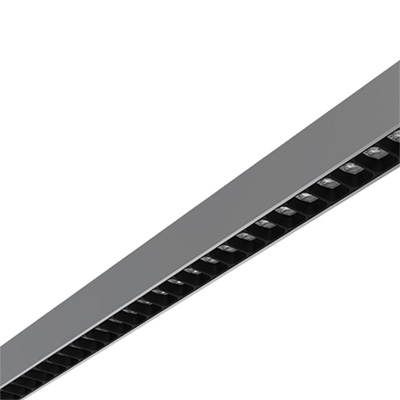

3F HD OCB Channel
Optics Control Black - LEED certification
Code 6340
L<2500 cd/m² 45°
Average luminance <2500 cd/m² for angles >45°.
Average luminance <200 cd/m² for angles >65°.
Environments with very exacting visual tasks and control of luminance at angles of >45° compared to the LEED certification.
Offices with video terminals and administrative, information and school offices.
Transparent methacrylate lenses with different facets to optimise the direction of the luminous flux.
Anti-reflective black polycarbonate alveolar optic.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
3F HD 50 - DALI electronic wiring 230V-50/60Hz
6339
3F HD50 BK 12/835 DALI 5P OCB L1174
13.5
1474
3500
>80
1174x57x80
40
6340
3F HD50 BK 15/835 DALI 5P OCB L1468
17
1843
3500
>80
1468x57x80
40
6344
3F HD50 BK 30/835 DALI 5P OCB L2935
33
3686
3500
>80
2935x57x80
40
6424
3F HD50 AL 12/835 DALI 5P OCB L1174
13.5
1474
3500
>80
1174x57x80
40
6425
3F HD50 AL 15/835 DALI 5P OCB L1468
17
1843
3500
>80
1468x57x80
40
6429
3F HD50 AL 30/835 DALI 5P OCB L2935
33
3686
3500
>80
2935x57x80
40
3F HD GSP Channel
Flat prismatic diffuser in methacrylate with low luminance film
Code 6246
L<3000 cd/m² 65°
Average luminance <3000 cd/m² for angles >65°.
Non-iridescent high efficiency specular aluminium with a titanium and magnesium surface treatment flow recuperator.
SP transparent methacrylate diffuser, prismatic outside, antiglare.
Anti-glare opal polycarbonate filter for brightness uniformity.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
3F HD 50 - DALI electronic wiring 230V-50/60Hz
6245
3F HD50 WH 13/840 DALI 5P GSP L1174
14
1374
4000
>80
1174x57x80
40
6246
3F HD50 WH 16/840 DALI 5P GSP L1468
19
1718
4000
>80
1468x57x80
40
6250
3F HD50 WH 32/840 DALI 5P GSP L2935
35
3435
4000
>80
2935x57x80
40
6330
3F HD50 BK 13/840 DALI 5P GSP L1174
14
1374
4000
>80
1174x57x80
40
6331
3F HD50 BK 16/840 DALI 5P GSP L1468
19
1718
4000
>80
1468x57x80
40
6335
3F HD50 BK 32/840 DALI 5P GSP L2935
35
3435
4000
>80
2935x57x80
40
6415
3F HD50 AL 13/840 DALI 5P GSP L1174
14
1374
4000
>80
1174x57x80
40
6416
3F HD50 AL 16/840 DALI 5P GSP L1468
19
1718
4000
>80
1468x57x80
40
6420
3F HD50 AL 32/840 DALI 5P GSP L2935
35
3435
4000
>80
2935x57x80
40
3F HD 100 - DALI electronic wiring 230V-50/60Hz
6275
3F HD100 WH 22/840 DALI 5P GSP L1174
24
2617
4000
>80
1174x100x80
40
6276
3F HD100 WH 26/840 DALI 5P GSP L1468
30
3271
4000
>80
1468x100x80
40
6280
3F HD100 WH 52/840 DALI 5P GSP L2935
58
6428
4000
>80
2935x100x80
40
6360
3F HD100 BK 22/840 DALI 5P GSP L1174
24
2617
4000
>80
1174x100x80
40
6361
3F HD100 BK 26/840 DALI 5P GSP L1468
30
3271
4000
>80
1468x100x80
40
6365
3F HD100 BK 52/840 DALI 5P GSP L2935
58
6428
4000
>80
2935x100x80
40
6445
3F HD100 AL 22/840 DALI 5P GSP L1174
24
2617
4000
>80
1174x100x80
40
6446
3F HD100 AL 26/840 DALI 5P GSP L1468
30
3271
4000
>80
1468x100x80
40
6450
3F HD100 AL 52/840 DALI 5P GSP L2935
58
6428
4000
>80
2935x100x80
40
3F HD FD Channel
Fixture suitable FDP or FDO
Code 6237
Average luminance <3000 cd/m² for angles >65° (FDP).
Non-iridescent high efficiency specular aluminium with a titanium and magnesium surface treatment flow recuperator.
For diffusers see accessories.
Code
Item
Absorbed power (W)
Output flux (lm)
CCT (K)
CRI
Dimensions
L x A x H
IP
3F HD 50 - DALI electronic wiring 230V-50/60Hz
6236
3F HD50 WH 13/840 DALI 5P FD L1174
14
1292 FDP
1250 FDO
4000
>80
1174x57x80
40
6237
3F HD50 WH 16/840 DALI 5P FD L1468
19
1615 FDP
1563 FDO
4000
>80
1468x57x80
40
6241
3F HD50 WH 32/840 DALI 5P FD L2935
35
3229 FDP
3126 FDO
4000
>80
2935x57x80
40
6321
3F HD50 BK 13/840 DALI 5P FD L1174
14
1292 FDP
1250 FDO
4000
>80
1174x57x80
40
6322
3F HD50 BK 16/840 DALI 5P FD L1468
19
1615 FDP
1563 FDO
4000
>80
1468x57x80
40
6326
3F HD50 BK 32/840 DALI 5P FD L2935
35
3229 FDP
3126 FDO
4000
>80
2935x57x80
40
6406
3F HD50 AL 13/840 DALI 5P FD L1174
14
1292 FDP
1250 FDO
4000
>80
1174x57x80
40
6407
3F HD50 AL 16/840 DALI 5P FD L1468
19
1615 FDP
1563 FDO
4000
>80
1468x57x80
40
6411
3F HD50 AL 32/840 DALI 5P FD L2935
35
3229 FDP
3126 FDO
4000
>80
2935x57x80
40
3F HD 100 - DALI electronic wiring 230V-50/60Hz
6266
3F HD100 WH 22/840 DALI 5P FD L1174
24
2468 FDP
2304 FDO
4000
>80
1174x100x80
40
6267
3F HD100 WH 26/840 DALI 5P FD L1468
30
3085 FDP
2880 FDO
4000
>80
1468x100x80
40
6271
3F HD100 WH 52/840 DALI 5P FD L2935
58
6062 FDP
5660 FDO
4000
>80
2935x100x80
40
6351
3F HD100 BK 22/840 DALI 5P FD L1174
24
2468 FDP
2304 FDO
4000
>80
1174x100x80
40
6352
3F HD100 BK 26/840 DALI 5P FD L1468
30
3085 FDP
2880 FDO
4000
>80
1468x100x80
40
6356
3F HD100 BK 52/840 DALI 5P FD L2935
58
6062 FDP
5660 FDO
4000
>80
2935x100x80
40
6436
3F HD100 AL 22/840 DALI 5P FD L1174
24
2468 FDP
2304 FDO
4000
>80
1174x100x80
40
6437
3F HD100 AL 26/840 DALI 5P FD L1468
30
3085 FDP
2880 FDO
4000
>80
1468x100x80
40
6441
3F HD100 AL 52/840 DALI 5P FD L2935
58
6062 FDP
5660 FDO
4000
>80
2935x100x80
40
Construction characteristics
Illuminotechnical characteristics
Direct symmetric distribution.
Lifetime (L93/B10): 30000 h. (tq+25°C)
Lifetime (L90/B10): 50000 h. (tq+25°C)
Lifetime (L85/B10): 80000 h. (tq+25°C)
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778.
Mechanical characteristics
Extruded aluminium housing.
Removable gear-tray.
Hot-dip galvanised steel linear connecting element installed on the body for rapid mechanical connection.
Electrical characteristics
In compliance with EN 60598-1.
Entrance to the upper power supply in proximity to a power head.
5 mm² section 2.5 pin through line with an irreversible quick coupling plug plug/socket fixed on the body for rapid electrical connection.
Branching via an irreversible quick coupling plug to connect the cable housing element to the socket.
Source characteristics
  • Linear LED modules.
  • Color initial tolerance (MacAdam): SDCM 3.
On request
  • different powers
  • LED sources with different colour temperatures
  • housing in different RAL colours
  • OC optic in different RAL colours
  • wiring: CLO
Applications
Environments: with VDTs, meeting rooms, offices.
Environments: architectural, commercial, staterooms, banks.
Environments where dynamic, soft and diffuse light is required for optimal visual comfort.
FDO version
Environments where soft diffuse light is required for optimal visual comfort and total shielding of the source.
Installation
Ceiling mounted or suspension installation.
Light Management
The DALI products of this family can be controlled manually with the technology 3F Easy Dim or even automatically and manually using the 3F Smart Dimming technology (refer to "Light Management").
FDP - Flat diffuser, externally microprismatic and made of transparent polycarbonate, with internal anti-glare opal polycarbonate filter for luminous uniformity.
Supplied in roll.
Accessory compatible with 3F HD FD Channel.
Code
Item
A01536
Channels diffusers 3F HD50 - FDP - 6m
A01537
Channels diffusers 3F HD50 - FDP - 9m
A01538
Channels diffusers 3F HD50 - FDP - 15m
A01544
Channels diffusers 3F HD100 - FDP - 6m
A01545
Channels diffusers 3F HD100 - FDP - 9m
A01546
Channels diffusers 3F HD100 - FDP - 15m
FDO - Flat diffuser, smooth outside and made of opal polycarbonate.
Supplied in roll.
Accessory compatible with 3F HD FD Channel.
Code
Item
A01540
Channels diffusers 3F HD50 - FDO - 6m
A01541
Channels diffusers 3F HD50 - FDO - 9m
A01542
Channels diffusers 3F HD50 - FDO - 15m
A01548
Channels diffusers 3F HD100 - FDO - 6m
A01549
Channels diffusers 3F HD100 - FDO - 9m
A01550
Channels diffusers 3F HD100 - FDO - 15m
Dilator coupling to connect flat diffusers FDP or FDO.
Accessory compatible with 3F HD FD Channel.
Code
Item
A01563
Dilator joint FD channles>15m - HD50 WH
A01564
Dilator joint FD channles>15m - HD100 WH
A01568
Dilator joint FD channles>15m - HD50 BK
A01569
Dilator joint FD channles>15m - HD100 BK
A01570
Dilator joint FD channles>15m - HD50 AL
A01571
Dilator joint FD channles>15m - HD100 AL
To be used for channels longer than 15 meters.
Pair of end caps for light channels equipped with GSP, FDP and FDO screens; made of plastic material reinforced with fiberglass and supplied with fixing screws.
Thickness: 20 mm each cap.
Accessory compatible with 3F HD FD Channel.
Code
Item
A01552
Pair of end caps for 3F HD50 WH channel
A01553
Pair of end caps for 3F HD50 BK channel
A01554
Pair of end caps for 3F HD50 AL channel
A01555
Pair of end caps for 3F HD100 WH channel
A01556
Pair of end caps for 3F HD100 BK channel
A01557
Pair of end caps for 3F HD100 AL channel
These accessories are not suitable for single-unit installation.
Pair of end caps for light channels equipped with OCB and OCW optics; made of plastic material reinforced with fiberglass and supplied with fixing screws.
Thickness: 20 mm each cap.
Accessory compatible with 3F HD FD Channel.
Code
Item
A01558
Pair of end caps for 3F HD50 WH OC channel
A01559
Pair of end caps for 3F HD50 BK OC channel
A01560
Pair of end caps for 3F HD50 AL OC channel
These accessories are not suitable for single-unit installation.
Pair of end caps for channels, in grey painted aluminium, with screws for fixing to housing, always required.
Thickness: 10 mm each cap.
Accessory compatible with 3F HD R FD Channel.
Code
Item
A01561
Pair of end caps for 3F HD50R WH channel FDP/FDO
A01562
Pair of end caps for 3F HD100R WH channel FDP/FDO
A01572
Pair of end caps for 3F HD50R WH channel GSP
A01573
Pair of end caps for 3F HD100R WH channel GSP
A01574
Pair of end caps for 3F HD50R WH channel OCW
These accessories are not suitable for single-unit installation.
Stainless steel sliding bracket that can be positioned freely.
Accessory dedicated to ceiling or recessed installation in inspectable false ceilings.
Code
Item
A01530
Ceiling/recessed sliding bracket 3F HD50
A01531
Ceiling/recessed sliding bracket 3F HD100
Free-position sliding bracket with regulator in stainless steel.
Accessory dedicated to suspended installation.
Code
Item
A01532
Sliding bracket with regulator for suspension installation 3F HD50DI
A01528
NEW
Sliding bracket with regulator for suspension installation 3F HD100DI
In the event of buying the sliding bracket with a regulator (code A01532 - A01528) on its own, the suspension cable must be made of galvanised steel with 49 elementary wires with a minimum diameter of 1,5 mm² (for a load of 15 kg).
Suspension without controller, galvanized steel cable 1.5 mm diameter, load 15 kg.
Accessory compatible with sliding bracket code A01532 and A01528.
Code
Item
A20485
Susp. without adjustment for Linux/HD - 0,5 m
A20486
Susp. without adjustment for Linux/HD - 1 m
A20487
Susp. without adjustment for Linux/HD - 2 m
A20488
Susp. without adjustment for Linux/HD - 3 m
A20489
Susp. without adjustment for Linux/HD - 4 m
A20490
Susp. without adjustment for Linux/HD - 5 m
A20491
Susp. without adjustment for Linux/HD - 6 m
In the case of purchase of only one sliding bracket with controller (codes A01532 - A01528), the suspension cable must be made of galvanized steel with 49 elementary wires of minimum 1.5 mm diameter (for a weight of 15 kg).
Galvanized steel cable, diameter 1.5 mm, composed of 49 wires.
15 kg capacity (ratio 5:1).
Accessory compatible with one of the following codes: A01532 - A01528 - A0714.
Code
Item
A0716
Coil galvanized cable diam. 1.5mm - 100m
The pack contains 100 metres.
A0717
Coil galvanized cable diam. 1.5mm - 500m
The pack contains 500 metres.
A0718
Coil galvanized cable diam. 1.5mm - 1000m
The pack contains 1000 metres.
Clamp in nickel-plated brass suitable for fixing and adjustment of galvanized steel wire (diameter 1,25 mm - 1,5 mm - 2 mm), complete with locking screws.
The 2 hole clamp allows to block and adjust the cable on a bearing element (part of the building) or on rounded eye bolt.
Accessory compatible with one of the following codes: A0716 - A0717 - A0718.
Code
Item
A0714
Clamp 2 holes - 100 pcs
The pack contains 100 pieces.
Terminal block (plug/socket) with irreversible snap-in double clamp, for power-supply connection at beginning and end of the channel, 5 poles.
Code
Item
A01567
3F HD - 5P socket/plug terminal block
Instruments
lightUpdate
The information, at the speed of Light.
Subscribe to lightUpdate to keep in touch with 3F Filippi: news, events and product news delivered to your mailbox.
Head office and factory
Via del Savena 28, Z.I. Piastrella
40065 Pian di Macina, Pianoro (Bologna), Italy
Tax Code. 01033260371 - VAT no. IT00529461204
Share Capital € 3,000,000 fully paid up
Bologna Register of Companies no. 01033260371
REA (economic administrative index) No. 234613

e-Mail: 3f-filippi@3f-filippi.it
Telephone: +39.051.6529611
Fax: +39.051.775884
Group
Social
lightUpdate
The information, at the speed of Light.
Subscribe to lightUpdate to keep in touch with 3F Filippi: news, events and product news delivered to your mailbox.
Cookie information
ACCEPT
This site uses only technical cookies, including third-party cookies, and does not use any profiling cookies.
In order to access the site, it is necessary to consent to the use of cookies by clicking on the "Accept" button.
For more information on how we use cookies and how to remove them, see our cookie policy.
