3F HD OCW Single
Optics Control White - LEED certification
NEW
Code 6213
L<2500 cd/m² 45°
Average luminance <2500 cd/m² for angles >45°.
Average luminance <1000 cd/m² for angles >65°.
Environments with very exacting visual tasks and control of luminance at angles of >45° compared to the LEED certification.
Offices with video terminals and administrative, information and school offices.
Transparent methacrylate lenses with different facets to optimise the direction of the luminous flux.
Anti-reflective white polycarbonate alveolar optic.
White colour PVC superior closure top.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
DALI PUSH DIM electronic wiring 230V-50/60Hz
3F HD50 WH 10/835 CLO OCW L1214
12
1388
3500
>80
1214x57x80
40
3F HD50 WH 13/835 CLO OCW L1508
15
1735
3500
>80
1508x57x80
40
3F HD50 WH 26/835 CLO OCW L2975
29
3470
3500
>80
2975x57x80
40

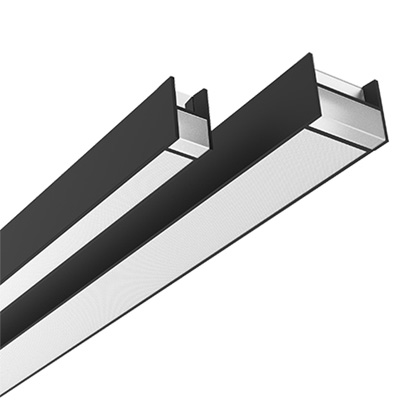

3F HD OCB Single
Optics Control Black - LEED certification
NEW
Code 6298
L<2500 cd/m² 45°
Average luminance <2500 cd/m² for angles >45°.
Average luminance <200 cd/m² for angles >65°.
Environments with very exacting visual tasks and control of luminance at angles of >45° compared to the LEED certification.
Offices with video terminals and administrative, information and school offices.
Transparent methacrylate lenses with different facets to optimise the direction of the luminous flux.
Anti-reflective black polycarbonate alveolar optic.
Black colour PVC superior closure top.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
DALI PUSH DIM electronic wiring 230V-50/60Hz
3F HD50 BK 10/835 CLO OCB L1214
12
1285
3500
>80
1214x57x80
40
3F HD50 BK 13/835 CLO OCB L1508
15
1606
3500
>80
1508x57x80
40
3F HD50 BK 26/835 CLO OCB L2975
29
3213
3500
>80
2975x57x80
40
3F HD50 AL 10/835 CLO OCB L1214
12
1285
3500
>80
1214x57x80
40
3F HD50 AL 13/835 CLO OCB L1508
15
1606
3500
>80
1508x57x80
40
3F HD50 AL 26/835 CLO OCB L2975
29
3213
3500
>80
2975x57x80
40

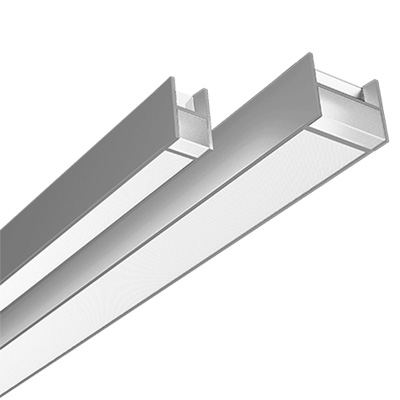

3F HD GSP Single
Screen prismatic
NEW
Code 6209
L<3000 cd/m² 65°
Average luminance <3000 cd/m² for angles >65°.
Non-iridescent high efficiency specular aluminium with a titanium and magnesium surface treatment flow recuperator.
SP flat diffuser in transparent PMMA, outside prismatic, anti-glare.
Anti-glare opal polycarbonate filter for brightness uniformity.
White colour PVC superior closure top.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
DALI PUSH DIM electronic wiring 230V-50/60Hz
3F HD50 WH 10/840 CLO GSP L1214
10,7
1015
4000
>80
1214x57x80
40
3F HD50 WH 12/840 CLO GSP L1508
14,2
1269
4000
>80
1508x57x80
40
3F HD50 WH 24/840 CLO GSP L2975
26,8
2539
4000
>80
2975x57x80
40
3F HD50 BK 10/840 CLO GSP L1214
10,7
1015
4000
>80
1214x57x80
40
3F HD50 BK 12/840 CLO GSP L1508
14,2
1269
4000
>80
1508x57x80
40
3F HD50 BK 24/840 CLO GSP L2975
26,8
2539
4000
>80
2975x57x80
40
3F HD50 AL 10/840 CLO GSP L1214
10,7
1015
4000
>80
1214x57x80
40
3F HD50 AL 12/840 CLO GSP L1508
14,2
1269
4000
>80
1508x57x80
40
3F HD50 AL 24/840 CLO GSP L2975
26,8
2539
4000
>80
2975x57x80
40
3F HD100 WH 16/840 CLO GSP L1214
18,4
1944
4000
>80
1214x100x80
40
3F HD100 WH 20/840 CLO GSP L1508
23
2431
4000
>80
1508x100x80
40
3F HD100 WH 41/840 CLO GSP L2975
45,9
4862
4000
>80
2975x100x80
40
3F HD100 BK 16/840 CLO GSP L1214
18,4
1944
4000
>80
1214x100x80
40
3F HD100 BK 20/840 CLO GSP L1508
23
2431
4000
>80
1508x100x80
40
3F HD100 BK 41/840 CLO GSP L2975
45,9
4862
4000
>80
2975x100x80
40
3F HD100 AL 16/840 CLO GSP L1214
18,4
1944
4000
>80
1214x100x80
40
3F HD100 AL 20/840 CLO GSP L1508
23
2431
4000
>80
1508x100x80
40
3F HD100 AL 41/840 CLO GSP L2975
45,9
4862
4000
>80
2975x100x80
40
3F HD FDP Single
Diffuser microprismatic NEW
Code 6220
L<3000 cd/m² 65°
Average luminance <3000 cd/m² for angles >65°.
Anodised body.
Non-iridescent high efficiency specular aluminium with a titanium and magnesium surface treatment flow recuperator.
Externally micro prismatic transparent flat anti-glare polycarbonate diffuser.
Anti-glare opal polycarbonate filter for brightness uniformity.
White colour PVC superior closure top.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
DALI PUSH DIM electronic wiring 230V-50/60Hz
3F HD50 WH 10/840 CLO FDP L1214
11,4
1010
4000
>80
1214x57x80
40
3F HD50 WH 13/840 CLO FDP L1508
15
1262
4000
>80
1508x57x80
40
3F HD50 WH 26/840 CLO FDP L2975
28,4
2524
4000
>80
2975x57x80
40
3F HD50 BK 10/840 CLO FDP L1214
11,4
1010
4000
>80
1214x57x80
40
3F HD50 BK 13/840 CLO FDP L1508
15
1262
4000
>80
1508x57x80
40
3F HD50 BK 26/840 CLO FDP L2975
28,4
2524
4000
>80
2975x57x80
40
3F HD50 AL 10/840 CLO FDP L1214
11,4
1010
4000
>80
1214x57x80
40
3F HD50 AL 13/840 CLO FDP L1508
15
1262
4000
>80
1508x57x80
40
3F HD50 AL 26/840 CLO FDP L2975
28,4
2524
4000
>80
2975x57x80
40
3F HD100 WH 18/840 CLO FDP L1214
19,7
1965
4000
>80
1214x100x80
40
3F HD100 WH 22/840 CLO FDP L1508
24,7
2456
4000
>80
1508x100x80
40
3F HD100 WH 44/840 CLO FDP L2975
49,3
4912
4000
>80
2975x100x80
40
3F HD100 BK 18/840 CLO FDP L1214
19,7
1965
4000
>80
1214x100x80
40
3F HD100 BK 22/840 CLO FDP L1508
24,7
2456
4000
>80
1508x100x80
40
3F HD100 BK 44/840 CLO FDP L2975
49,3
4912
4000
>80
2975x100x80
40
3F HD100 AL 18/840 CLO FDP L1214
19,7
1965
4000
>80
1214x100x80
40
3F HD100 AL 22/840 CLO FDP L1508
24,7
2456
4000
>80
1508x100x80
40
3F HD100 AL 44/840 CLO FDP L2975
49,3
4912
4000
>80
2975x100x80
40
3F HD FDO Single
Opal diffuser NEW
Anodised body.
Non-iridescent high efficiency specular aluminium with a titanium and magnesium surface treatment flow recuperator.
Flat opal anti-glare polycarbonate diffuser.
White colour PVC superior closure top.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
DALI PUSH DIM electronic wiring 230V-50/60Hz
3F HD50 WH 10/840 CLO FDO L1214
11,4
978
4000
>80
1214x57x80
40
3F HD50 WH 13/840 CLO FDO L1508
15
1222
4000
>80
1508x57x80
40
3F HD50 WH 26/840 CLO FDO L2975
28,4
2444
4000
>80
2975x57x80
40
3F HD50 BK 10/840 CLO FDO L1214
11,4
978
4000
>80
1214x57x80
40
3F HD50 BK 13/840 CLO FDO L1508
15
1222
4000
>80
1508x57x80
40
3F HD50 BK 26/840 CLO FDO L2975
28,4
2444
4000
>80
2975x57x80
40
3F HD50 AL 10/840 CLO FDO L1214
11,4
978
4000
>80
1214x57x80
40
3F HD50 AL 13/840 CLO FDO L1508
15
1222
4000
>80
1508x57x80
40
3F HD50 AL 26/840 CLO FDO L2975
28,4
2444
4000
>80
2975x57x80
40
3F HD100 WH 18/840 CLO FDO L1214
19,7
1834
4000
>80
1214x100x80
40
3F HD100 WH 22/840 CLO FDO L1508
24,7
2293
4000
>80
1508x100x80
40
3F HD100 WH 44/840 CLO FDO L2975
49,3
4586
4000
>80
2975x100x80
40
3F HD100 BK 18/840 CLO FDO L1214
19,7
1834
4000
>80
1214x100x80
40
3F HD100 BK 22/840 CLO FDO L1508
24,7
2293
4000
>80
1508x100x80
40
3F HD100 BK 44/840 CLO FDO L2975
49,3
4586
4000
>80
2975x100x80
40
3F HD100 AL 18/840 CLO FDO L1214
19,7
1834
4000
>80
1214x100x80
40
3F HD100 AL 22/840 CLO FDO L1508
24,7
2293
4000
>80
1508x100x80
40
3F HD100 AL 44/840 CLO FDO L2975
49,3
4586
4000
>80
2975x100x80
40
Construction characteristics
Illuminotechnical characteristicsDirect symmetric distribution.
Lifetime (L100/B10): 50000 h. (tq+25°C)
Lifetime (L90/B10): 80000 h. (tq+25°C)
Lifetime (L85/B10): 100000 h. (tq+25°C)
Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778.
Mechanical characteristicsExtruded aluminium housing.
Removable gear-tray.
Lighting head caps with specular aluminium frieze.
Electrical characteristicsIn compliance with EN 60598-1.
Electronic DALI cable with CLO (Constant Light Output) function to maintain the luminous flux over time and obtain immediate energy savings.
Entrance to the upper power supply in proximity to a power head.
Branching via an irreversible quick coupling plug to connect the cable housing element to the socket.
Source characteristics
- Linear LED modules.
- Color initial tolerance (MacAdam): SDCM 3.
On request
- different powers
- LED sources with different colour temperatures
- housing in different RAL colours
- optic in different RAL colours
Applications
Environments: with VDTs, meeting rooms, offices.
Environments: architectural, commercial, staterooms, banks.
Environments where dynamic, soft and diffuse light is required for optimal visual comfort.
FDO versionEnvironments where soft diffuse light is required for optimal visual comfort and total shielding of the source.
Installation
Ceiling mounted or suspension installation.
Light Management
The DALI products of this family can be controlled manually with the technology 3F Easy or even automatically and manually using the 3F Smart Dimming technology (refer to "Light Management").
New
Stainless steel sliding bracket that can be positioned freely.
Accessory dedicated to ceiling or recessed installation in inspectable false ceilings.
Code
Item
Ceiling/recessed sliding bracket 3F HD50
Ceiling/recessed sliding bracket 3F HD100
New
Free-position sliding bracket with regulator in stainless steel.
Accessory dedicated to suspended installation.
Code
Item
Sliding bracket with regulator for suspension installation 3F HD50DI
Sliding bracket with regulator for suspension installation 3F HD100DI
In the event of buying the sliding bracket with a regulator (code A01532 - A01533) on its own, the suspension cable must be made of galvanised steel with 49 elementary wires with a minimum diameter of 1,5 mm² (for a load of 15 kg).
Suspension without controller, galvanized steel cable 1.5 mm diameter, load 15 kg.
Code
Item
Susp. without adjustment for Linux/HD - 0,5 m
A20486
Susp. without adjustment for Linux/HD - 1 m
A20487
Susp. without adjustment for Linux/HD - 2 m
A20488
Susp. without adjustment for Linux/HD - 3 m
A20489
Susp. without adjustment for Linux/HD - 4 m
A20490
Susp. without adjustment for Linux/HD - 5 m
A20491
Susp. without adjustment for Linux/HD - 6 m
Galvanized steel cable, diameter 1.5 mm, composed of 49 wires.
15 kg capacity (ratio 5:1).
Code
Item
A0716
Coil galvanized cable diam. 1.5mm - 100m
The pack contains 100 metres.
A0717
Coil galvanized cable diam. 1.5mm - 500m
The pack contains 500 metres.
A0718
Coil galvanized cable diam. 1.5mm - 1000m
The pack contains 1000 metres.
Clamp in nickel-plated brass suitable for fixing and adjustment of galvanized steel wire (diameter 1,25 mm - 1,5 mm - 2 mm), complete with locking screws.
The 2 hole clamp allows to block and adjust the cable on a bearing element (part of the building) or on rounded eye bolt.
Code
Item
A0714
Clamp 2 holes - 100 pcs
The pack contains 100 pieces.
New
Electric supply with white polycarbonate case, internal bracket in galvanized steel.
Code
Item
5-pole rectangular rose (no cable)
