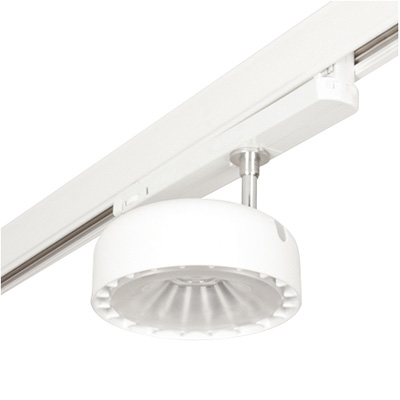

3F Emilio Track White DALI Spot
Body and wired unit in white polycarbonate with busbar adaptor.
ø x L x H
DALI electronic wiring 230V-50/60Hz
3F Emilio TK LED 2000/930 DALI
3F Emilio TK LED 3000/830 DALI
3F Emilio TK LED 3000/840 DALI
Construction characteristicsIlluminotechnical characteristics
Symmetrical (TK) spot distribution.
Lifetime (L90/B20): 30000 h. (tq+25°C)
Lifetime (L80/B20): 50000 h. (tq+25°C)
Photobiological safety RG1, low risk, in compliance with IEC 62471, IEC/TR 62778.Mechanical characteristics
Wired unit in polycarbonate with busbar adaptor.
Single-piece in die-cast aluminium with passive dissipation with perimeter cooling slots on upper edge, giving a crown of light effect to the fitting.
Invisible lock for positioning the luminous flux.
Lens made from transparent PMMA methacrylate with glossy surface and differentiated photo-etched.
Positioning arm in galvanized brass with sphere to allow for vertical positioning at angles from 0° to 90° and horizontal positioning from 0° to 360°.Electrical characteristics
Wiring unit separate from the body, invisible and integrated into the busbar.
- Compact LED module.
- Color initial tolerance (MacAdam): SDCM 3.
- Zhaga Book 3 compliant.
- different power levels, colour rendering indices and colour temperatures
- housing in different RAL colours
Environments: commercial, museums, shops.
This product is suitable for installation on a 3-phase electrified busbar "Binario 3F".
The DALI products of this family can be controlled manually with the technology 3F Easy or even automatically and manually using the 3F Smart Dimming technology (refer to "Light Management").
