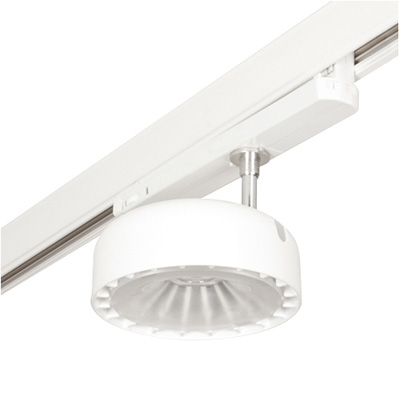

3F Emilio Track White BLE Spot
NEW
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
ø x L x H
IP
DALI electronic wiring 230V-50/60Hz
3F Emilio TK LED 2000/930 DALI BLE
29,1
2462
3000
>90
130x260x105
20
3F Emilio TK LED 3000/830 DALI BLE
30,9
3106
3000
>80
130x260x105
20
3F Emilio TK LED 3000/840 DALI BLE
28,7
3067
4000
>80
130x260x105
20
Construction characteristics
Illuminotechnical characteristicsSymmetrical (TK) spot distribution.
Lifetime (L90/B20): 30000 h. (tq+25°C)
Lifetime (L80/B20): 50000 h. (tq+25°C)
Photobiological safety RG1, low risk, in compliance with IEC 62471, IEC/TR 62778.
Mechanical characteristicsWired unit in polycarbonate with busbar adaptor.
Single-piece in die-cast aluminium with passive dissipation with perimeter cooling slots on upper edge, giving a crown of light effect to the fitting.
Invisible lock for positioning the luminous flux.
Lens made from transparent PMMA methacrylate with glossy surface and differentiated photo-etched.
Positioning arm in galvanized brass with sphere to allow for vertical positioning at angles from 0° to 90° and horizontal positioning from 0° to 360°.
Electrical characteristicsCabling unit with 3F Sensor Bluetooth technology, separated from the body, invisible and integrated into the track.
Class II.
Source characteristics
- Compact LED module.
- Compact LED modules.
- Color initial tolerance (MacAdam): SDCM 3.
- Zhaga Book 3 compliant.
On request
- different power levels, colour rendering indices and colour temperatures
- housing in different RAL colours
Applications
Environments: commercial, museums, shops.
Installation
This product is suitable for installation on a 3-phase electrified busbar "Binario 3F".
Light Management
Products in the BLE range can be controlled manually or automatically with 3F Sensor Bluetooth technology (see the chapter on "Light Management").
