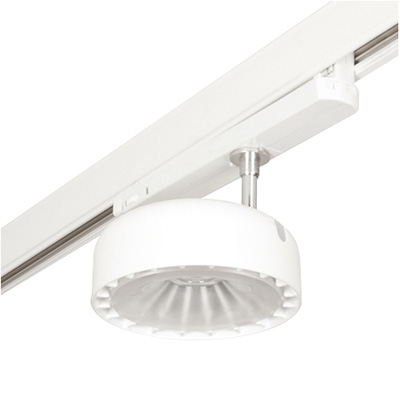

3F Emilio Track HQ Spot
Body and wired unit in polycarbonate with busbar adaptor.
ø x L x H
Electronic wiring 230V-50/60Hz
3F Emilio HQ TK WH 2000/3K SPOT
3F Emilio HQ TK WH 3000/3K SPOT
3F Emilio HQ TK BK 2000/3K SPOT
3F Emilio HQ TK BK 3000/3K SPOT
Construction characteristicsIlluminotechnical characteristics
Symmetrical (TK) spot distribution.
Lifetime (L85/B20): 30000 h. (tq+25°C)
Lifetime (L70/B20): 50000 h. (tq+25°C)
Photobiological safety RG1, low risk, in compliance with IEC 62471, IEC/TR 62778.Mechanical characteristics
Wired unit in polycarbonate with busbar adaptor.
Single-piece in die-cast aluminium with passive dissipation with perimeter cooling slots on upper edge, giving a crown of light effect to the fitting.
Invisible lock for positioning the luminous flux.
Lens made from transparent PMMA methacrylate with glossy surface and differentiated photo-etched.
Positioning arm in galvanized brass with sphere to allow for vertical positioning at angles from 0° to 90° and horizontal positioning from 0° to 360°.Electrical characteristics
Wiring unit separate from the body, invisible and integrated into the busbar.
- Compact LED module.
- Color initial tolerance with high Color Rendering Index (MacAdam): SDCM 3.
- Zhaga Book 3 compliant.
Environments: commercial, museums, shops.
This product is suitable for installation on a 3-phase electrified busbar "Binario 3F".
