3F Dìagon FCL

NEW
Code 23787
L<1000 cd/m² 65°
19W - Average luminance <1000 cd/m² for radial angles >65°.
25W - Average luminance <1500 cd/m² for radial angles >65°.
Installation Interdistance Transv.D = 1.50 x hu - Long.D = 1.50 x hu.
Rhomboidal lenses with differentiated surfaces, etched and prismatic to optimise the orientation of the luminous flux, in transparent methacrylate.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Diagon FCL 19W/840 599x599
21
3316
4000
>80
599x599x60
43
3F Diagon FCL 25W/840 599x599
28
4215
4000
>80
599x599x60
43
DALI PUSH DIM electronic wiring 230V-50/60Hz
3F Diagon FCL 19W/840 DALI 599x599
21
3316
4000
>80
599x599x60
43
3F Diagon FCL 25W/840 DALI 599x599
28
4215
4000
>80
599x599x60
43
EP maintained emergency wiring, 1hr duration with 24hrs recharge, fuse
3F Diagon FCL 19W/840 EP 599x599
22
3316
4000
>80
599x599x60
43
3F Diagon FCL 25W/840 EP 599x599
29
4215
4000
>80
599x599x60
43
3F Dìagon FCH

NEW
Code 23797
L<1000 cd/m² 65°
19W - Average luminance <1000 cd/m² for radial angles >65°.
25W - Average luminance <1500 cd/m² for radial angles >65°.
Installation Interdistance Transv.D = 1.50 x hu - Long.D = 1.50 x hu.
Rhomboidal lenses with differentiated surfaces, etched and prismatic to optimise the orientation of the luminous flux, in transparent methacrylate.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Diagon FCH 19W/840 599x599
21
3316
4000
>80
599x599x60
43
3F Diagon FCH 25W/840 599x599
28
4215
4000
>80
599x599x60
43
DALI PUSH DIM electronic wiring 230V-50/60Hz
3F Diagon FCH 19W/840 DALI 599x599
21
3316
4000
>80
599x599x60
43
3F Diagon FCH 25W/840 DALI 599x599
28
4215
4000
>80
599x599x60
43
EP maintained emergency wiring, 1hr duration with 24hrs recharge, fuse
3F Diagon FCH 19W/840 EP 599x599
22
3316
4000
>80
599x599x60
43
3F Diagon FCH 25W/840 EP 599x599
29
4215
4000
>80
599x599x60
43
3F Dìagon FP

NEW
Code 23770
L<1000 cd/m² 65°
19W - Average luminance <1000 cd/m² for radial angles >65°.
25W - Average luminance <1500 cd/m² for radial angles >65°.
Installation Interdistance Transv.D = 1.50 x hu - Long.D = 1.50 x hu.
Rhomboidal lenses with differentiated surfaces, etched and prismatic to optimise the orientation of the luminous flux, in transparent methacrylate.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Diagon FP 19W/840 621x621
21
3316
4000
>80
621x621x60
43
3F Diagon FP 25W/840 621x621
28
4215
4000
>80
621x621x60
43
DALI PUSH DIM electronic wiring 230V-50/60Hz
3F Diagon FP 19W/840 DALI 621x621
21
3316
4000
>80
621x621x60
43
3F Diagon FP 25W/840 DALI 621x621
28
4215
4000
>80
621x621x60
43
EP maintained emergency wiring, 1hr duration with 24hrs recharge, fuse
3F Diagon FP 19W/840 EP 621x621
22
3316
4000
>80
621x621x60
43
3F Diagon FP 25W/840 EP 621x621
29
4215
4000
>80
621x621x60
43

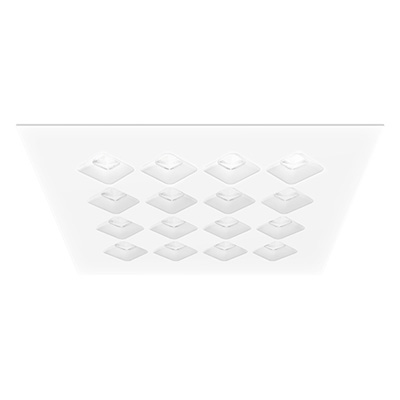

3F Dìagon FP OP

NEW
Installation Interdistance Transv.D = 1.20 x hu - Long.D = 1.20 x hu.
Opal methacrylate rhomboid lenses with differentiated, engraved and prismatic surfaces for diffused, soft lighting and excellent visual comfort.
Code
Item
Absorbed
power (W)
Output
flux (lm)
CCT
(K)
CRI
Dimensions
L x A x H
IP
Electronic wiring 230V-50/60Hz
3F Diagon FP 25W/840 OP 621x621
28
3588
4000
>80
621x621x60
43
DALI PUSH DIM electronic wiring 230V-50/60Hz
3F Diagon FP 25W/840 DALI OP 621x621
28
3588
4000
>80
621x621x60
43
EP maintained emergency wiring, 1hr duration with 24hrs recharge, fuse
3F Diagon FP 25W/840 EP OP 621x621
29
3588
4000
>80
621x621x60
43
Construction characteristics
Illuminotechnical characteristicsDirect symmetric distribution.
Colour temperature available /840.
Lifetime (L95/B10): 30000 h. (tq+25°C)
Lifetime (L90/B10): 50000 h. (tq+25°C)
Lifetime (L80/B10): 80000 h. (tq+25°C)
Lifetime (L75/B10): 100000 h. (tq+25°C)
Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778.
Mechanical characteristicsHousing in hot-galvanized steel, painted in white polyester.
Honeycombed diagonal screen in white anti-glare polycarbonate.
Height only 30 mm.
The FP (For Plasterboard) version is dedicated to plasterboard false ceilings.
The FCL (For Complanar Low) version is dedicated to plasterboard with metal panels and low structures.
The FCH (For Complanar High) version is dedicated to plasterboard with metal panels and high structures.
For all versions, spring fixing in stainless steel.
Electrical characteristicsLuminaires with EP permanent emergency wiring are EN 60598-2-22 standard compliant.
Quick connection.
Source characteristics
- Squared LED modules.
- Color initial tolerance (MacAdam): SDCM 3.
On request
- different power levels, colour rendering indices and colour temperatures
- wiring: emergency, twin-circuit
- luminaires for pull-up installation with brackets
- 3F Tunable White versione
Applications
FCL, FCH, FP versionsEnvironments: staterooms, with VDTs, offices.
Environments with exacting visual tasks, where diffused soft light for optimum visual comfort is required.
OP versionEnvironments where soft diffuse light is required for optimal visual comfort and total shielding of the source.
Installation
Do not hesitate to contact our Sales Network or our Technical Offices to check the compatibility of the FCH and FCL models with the various types of metallic false ceilings.
Light Management
The DALI products of this family can be controlled manually with the technology 3F Easy or even automatically and manually using the 3F Smart Dimming technology (refer to "Light Management").
Anti-fall safety cable for fixing the housing to the building structure.
Length 2.5 m.

New
Suction cup to extract "3F Dìagon" installed in abutment.
To be used in false ceilings with metal panels, where the space between the luminaire and the surrounding panels does not allow the use of other tools.
Code
Item
Suction cup for Diagon maintenance
